Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.4
Removing the cartridge group with compressor and turbine casing
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021
10.4 Removing the cartridge group with compressor
and turbine casing

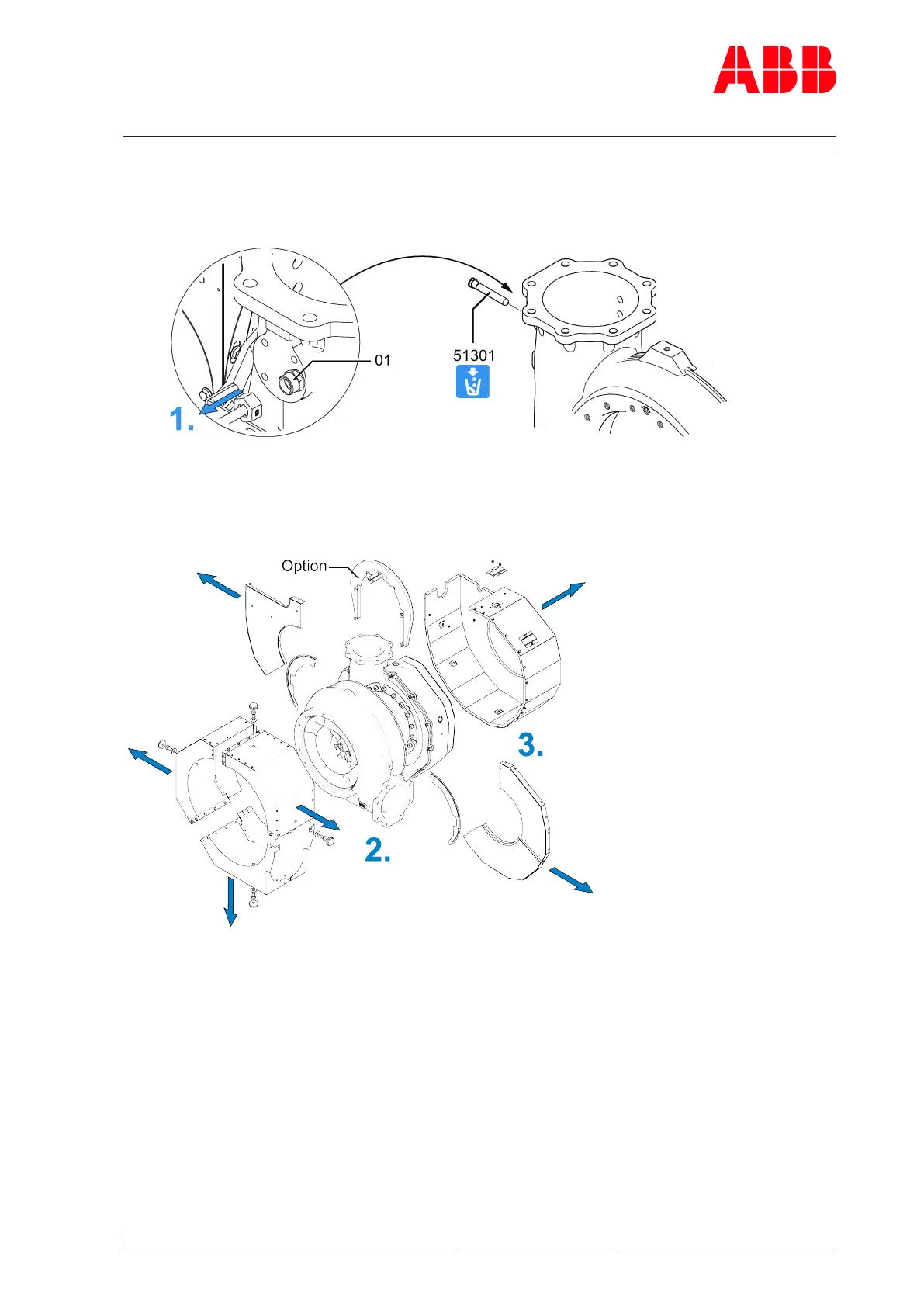

Fig.55: Turbine cleaning nozzle
1. If present: Loosen the turbine cleaning connection.
The cleaning nozzle(51301) must be replaced after each removal procedure. If the clean-
ing nozzle is not to be replaced, the screw connection(01) must not be loosened during
disassembly.
Fig.56: Remove insulation
2. Remove the compressor casing insulation.
3. Remove the turbine casing insulation.
Page 107 / 198
