ABB HT609075 - Fig. 82: Installing Gas Outlet Casing with Support 2

Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.19
Installing the gas outlet casing
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021

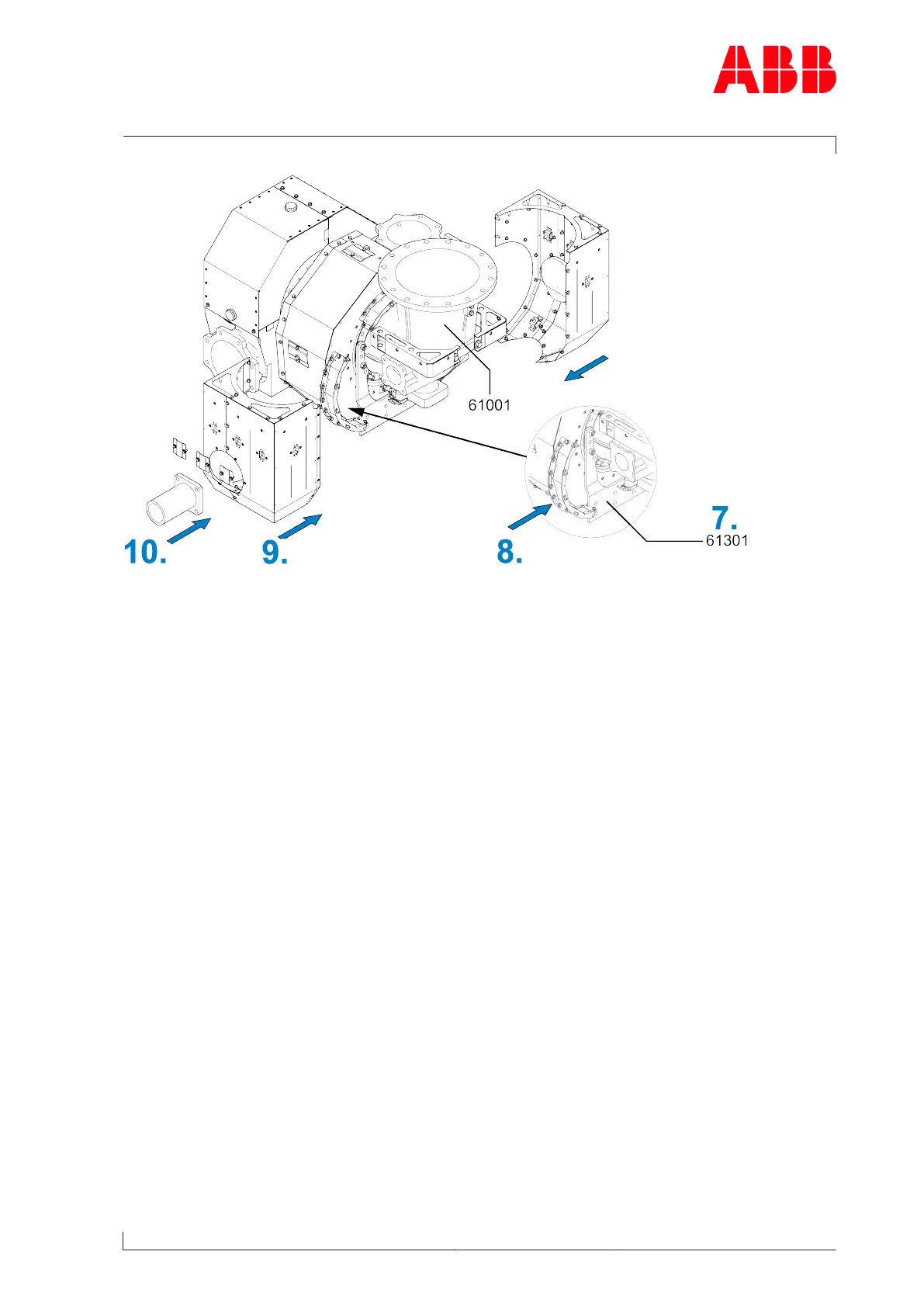

Fig.82: Installing gas outlet casing with support 2
7. Fit the screws of the support. Tighten in accordance with enginebuilder’s specifications.
8. Fit insulation ring. Observe tightening torques (see Table of tightening torques →97).
9. Fit gas outlet casing insulation (see Table of tightening torques →97).
10. If present: Attach waste gate pipe. Tighten in accordance with enginebuilder’s specifica-
tions.
Page 131 / 198
