11 Dismantling and fitting, cartridge concept / 11.3 Removing the cart-
ridge group
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021

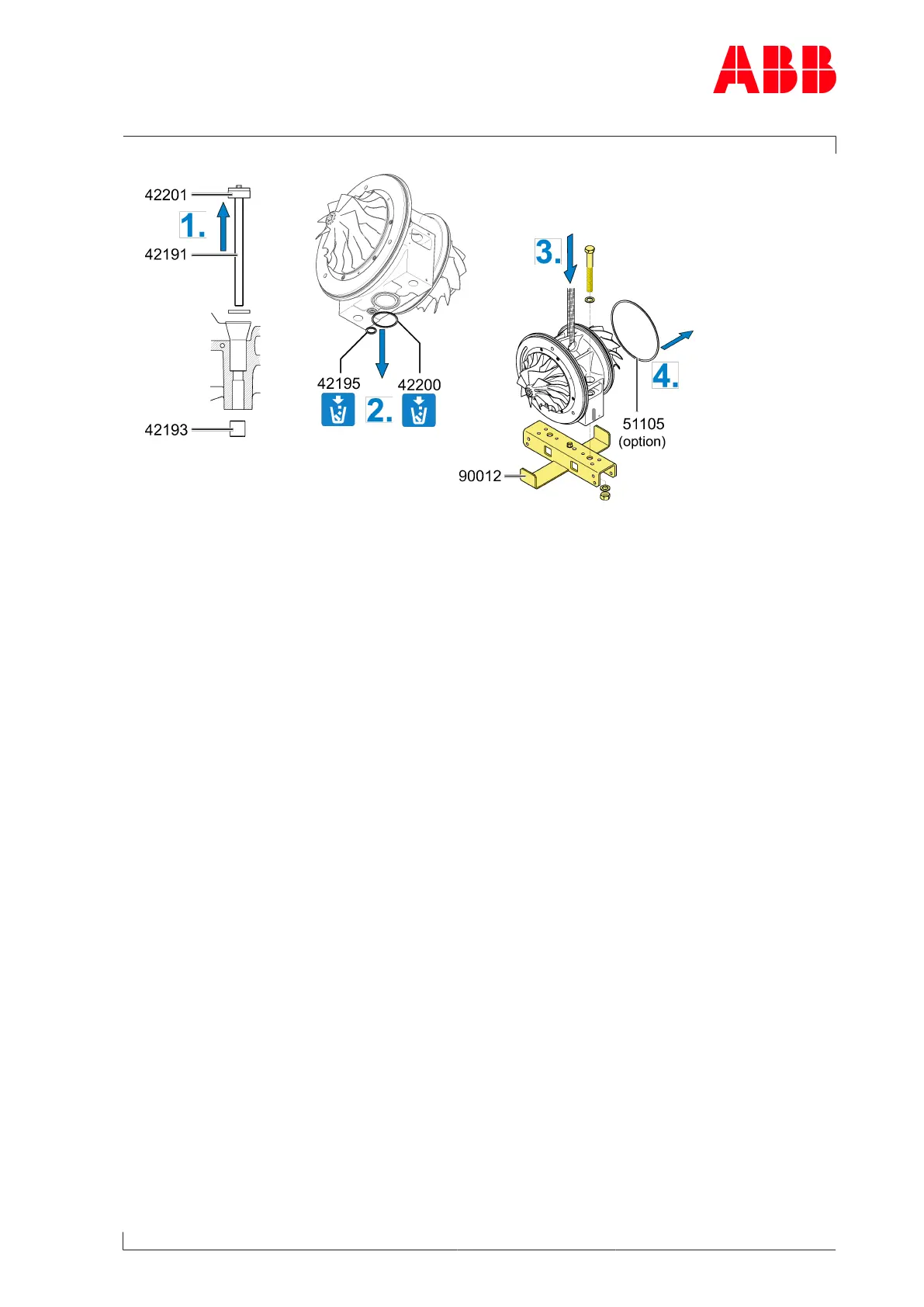

Fig.94: Removing cartridge group 2
1. Remove the centering bush (42193) and the threaded rod (42191) along with the clamping
nut (42201).
2. Remove and dispose of the O-rings (42195, 42200).
3. Attach the cartridge group to the service support (90012).
4. If present: Remove the metal C-ring(51105).
