ABB HT609075 - Installing the Cartridge Group; Fig. 69: Lifting the Cartridge Group and Rotating It

Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.12
Installing the cartridge group
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021
10.12 Installing the cartridge group

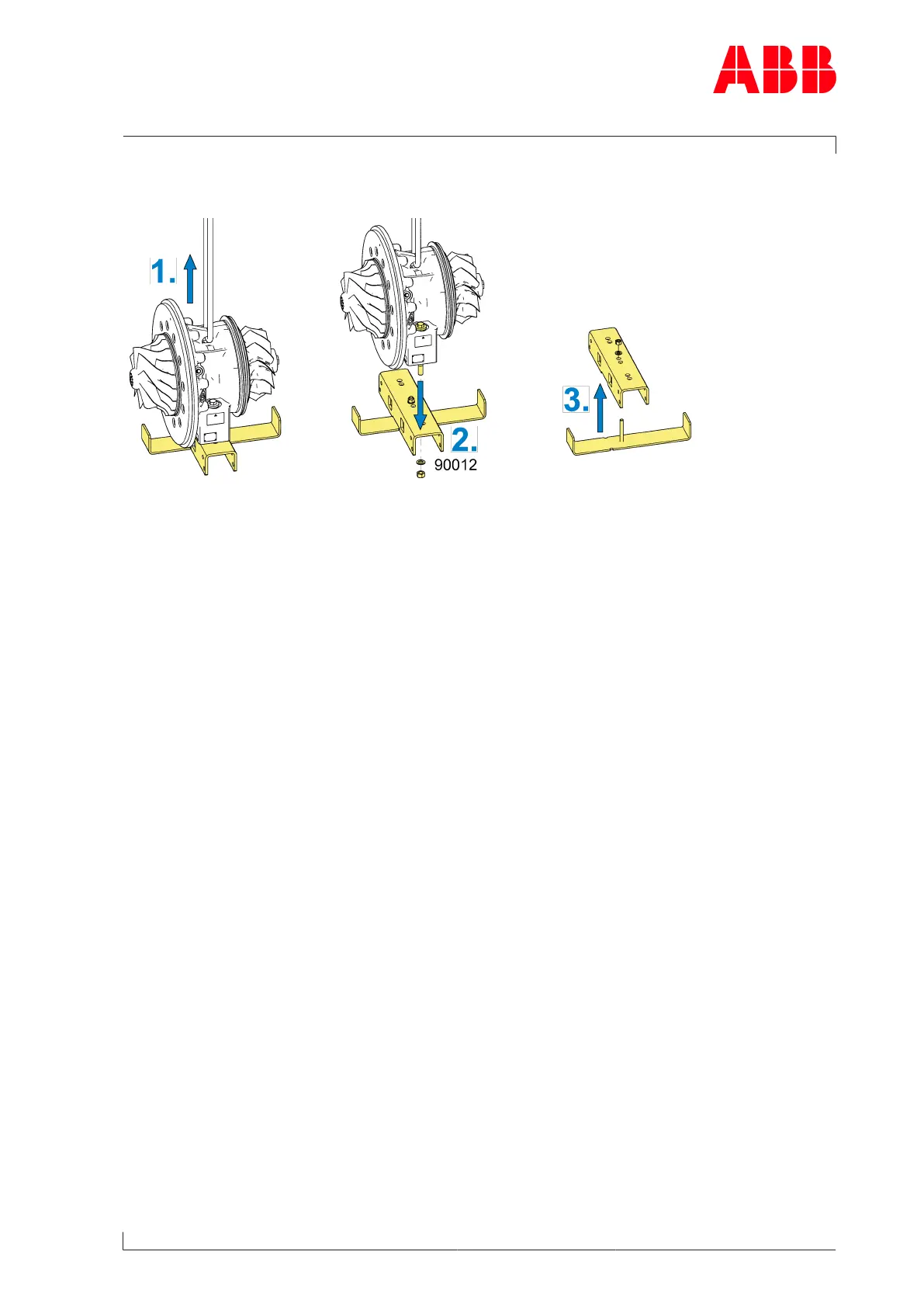

Fig.69: Lifting the cartridge group and rotating it by 90°
1. Fasten lifting gear to cartridge group and lift cartridge group.
2. Remove service support(90012).
3. Dismantle service support.
