Installing the cartridge group on the service support
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021
10.7 Installing the cartridge group on the service
support

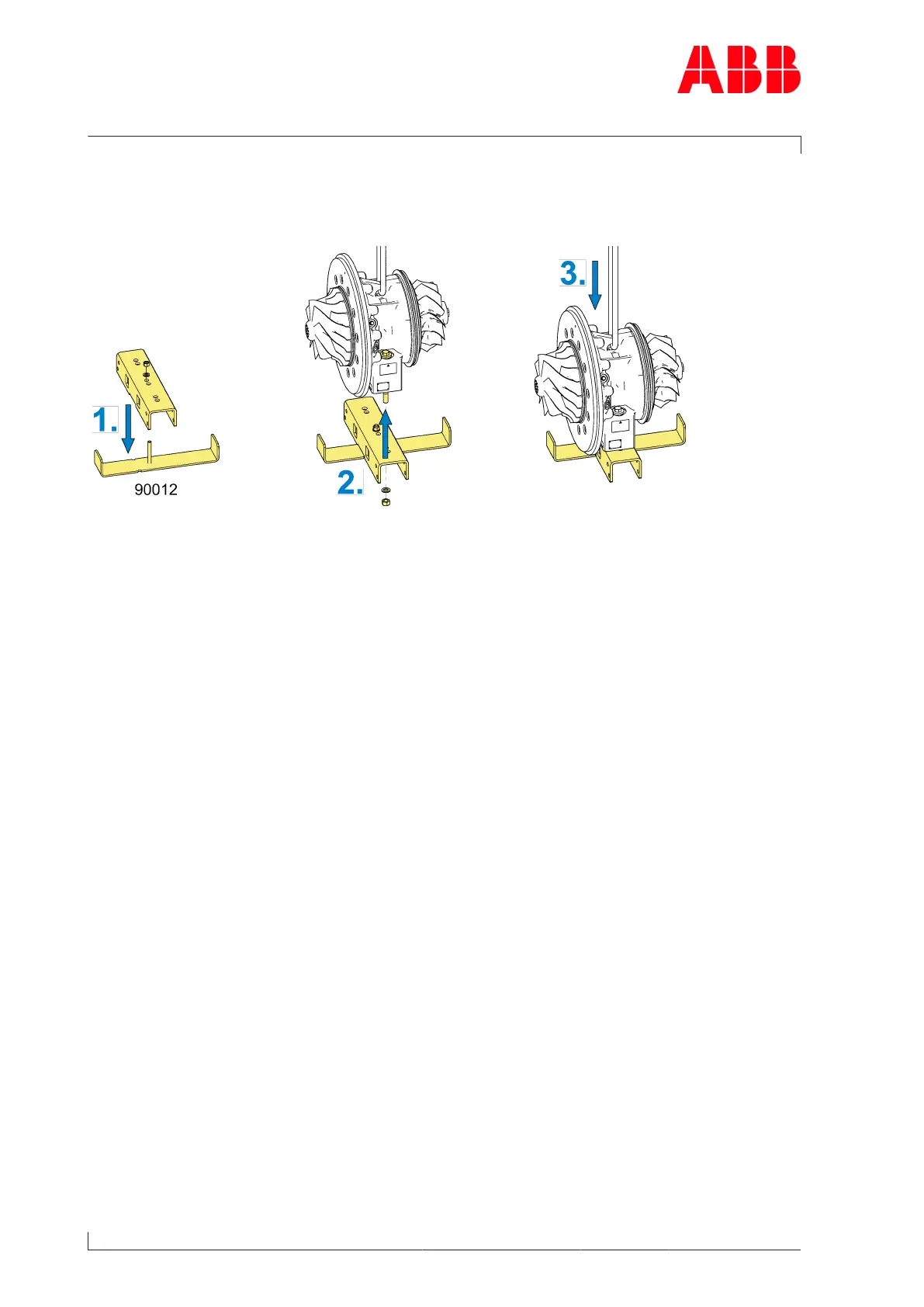

Fig.64: Installing the cartridge group on the service support
1. Assemble the service support (90012) with longitudinal and cross-pieces.
2. Fit service support to cartridge group.
3. Put down cartridge group.
