13 Removing and installing 6-nozzle turbine cleaning component (op-
tional) / 13.2 Assembly
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021

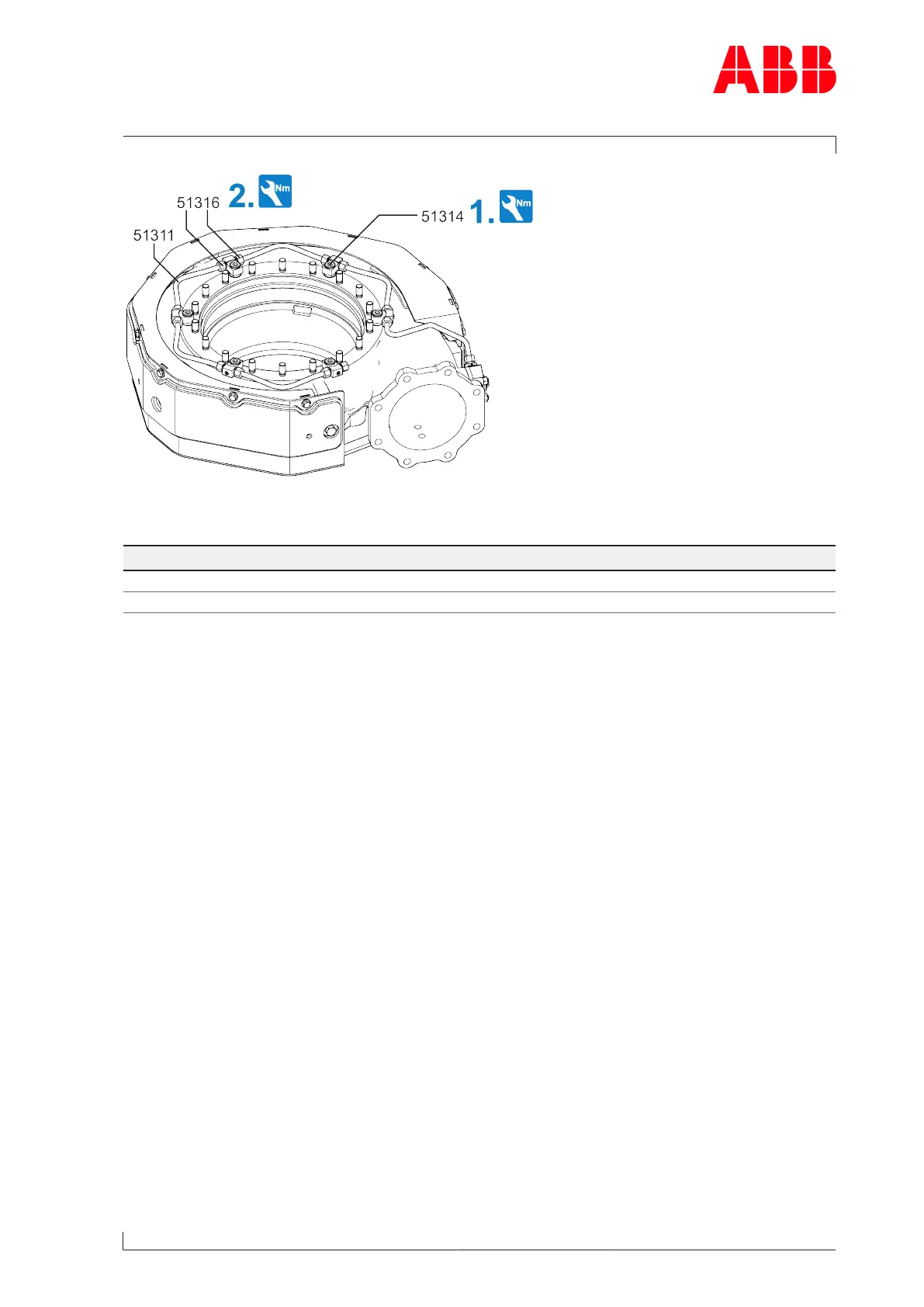

Fig.128: Elbow 2 assembly
Product 51314 [Nm] 51316 [Nm]
A150-M 80 70
A155-M 100 90
Table76: Tightening torque (51314 / 51316)
1. Tighten hexagon-head screws(51314) to tightening torque.
2. Tighten union nuts(51316) of elbows(51311) to tightening torque.
