9 Dismantling and fitting with removed air inlet and gas outlet / 9.19
Installing the gas outlet casing
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020

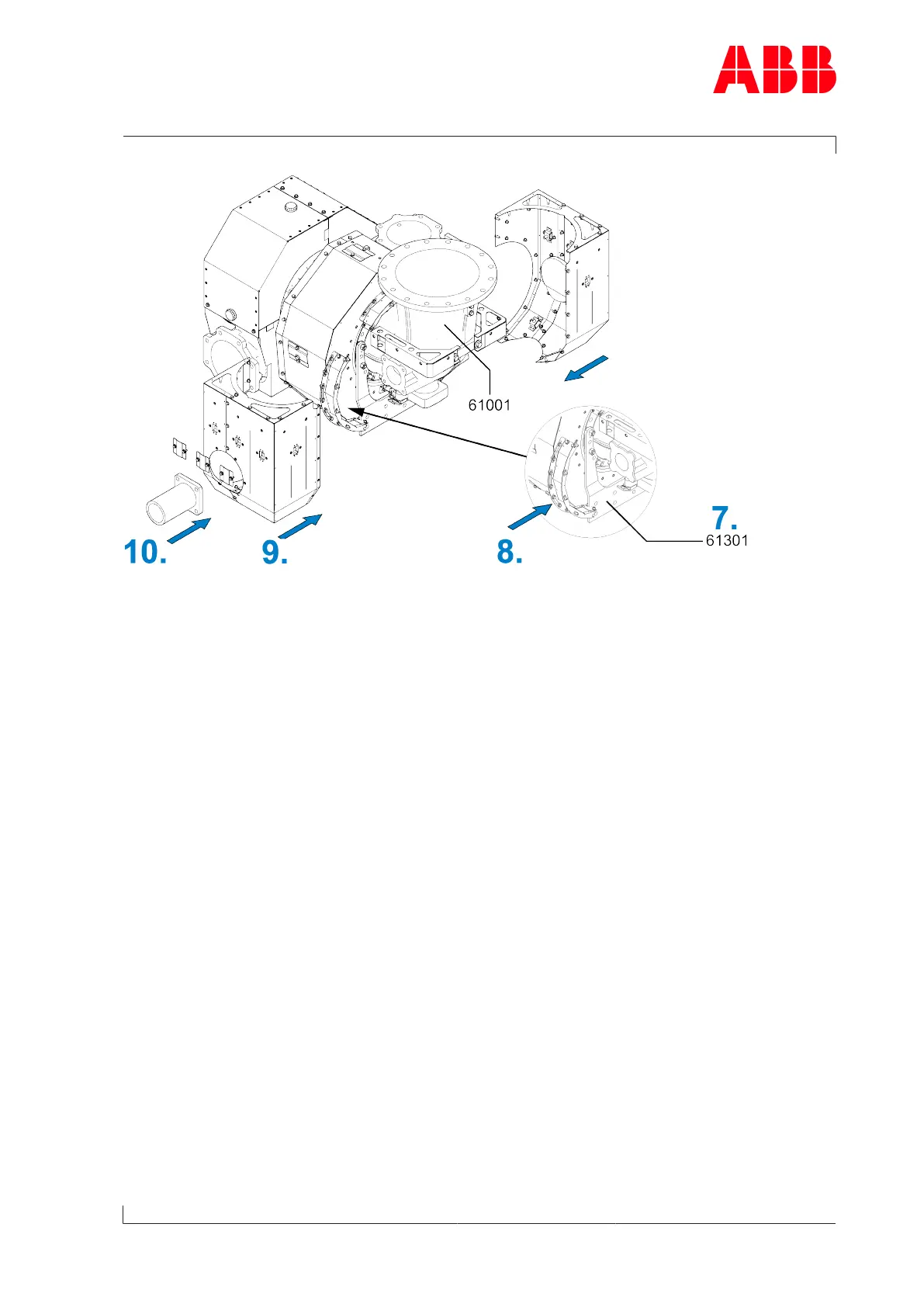

Fig.74: Installing gas outlet casing with support 2
7. Fit the screws of the support. Tighten in accordance with enginebuilder’s specifications.
8. Fit insulation ring. Observe tightening torques (see Table of tightening torques →74).
9. Fit gas outlet casing insulation (see Table of tightening torques →74).
10. If present: Attach waste gate pipe. Tighten in accordance with enginebuilder’s specifica-
tions.
