Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
17 Spare parts / 17.3 View of turbocharger with part numbers
© Copyright 2020 ABB. All rights reserved.
HZTL4032_EN
Rev.P
March 2020
17.3

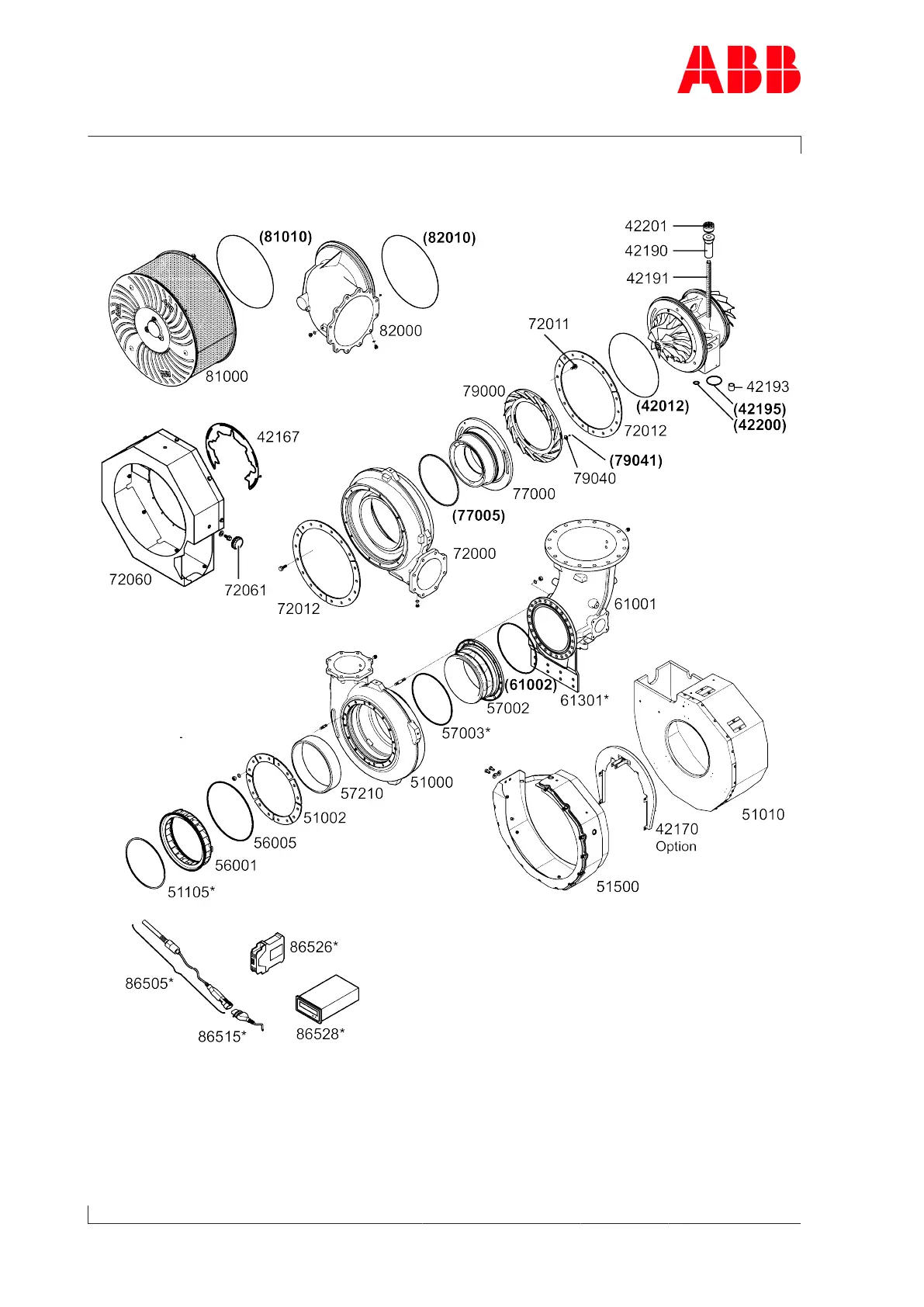

View of turbocharger with part numbers
Fig.125: Overview of part numbers
* Depending on the specification of the turbocharger
(……)
only available in customer spare part set (97070).
Page 160 / 171
189
191
