Operation Manual / 4 Product description / A150-M56/66/57/67 -

A155-M..

14 Taking out of operation at short notice / 14.4 Fitting the cover

plate

14.4 Fitting the cover plate

u Remove turbocharger (see chapter Removing and Installing →10).

¡ Gas outlet casing removed

u Fit the turbine casing with the gas outlet casing into the gas pipe again.

u Attach the cover plate (see following section).

¡ Gas outlet casing not removed

u Fit the turbine casing into the gas pipe and on the gas outlet casing again.

u Attach the cover plate (see following section).

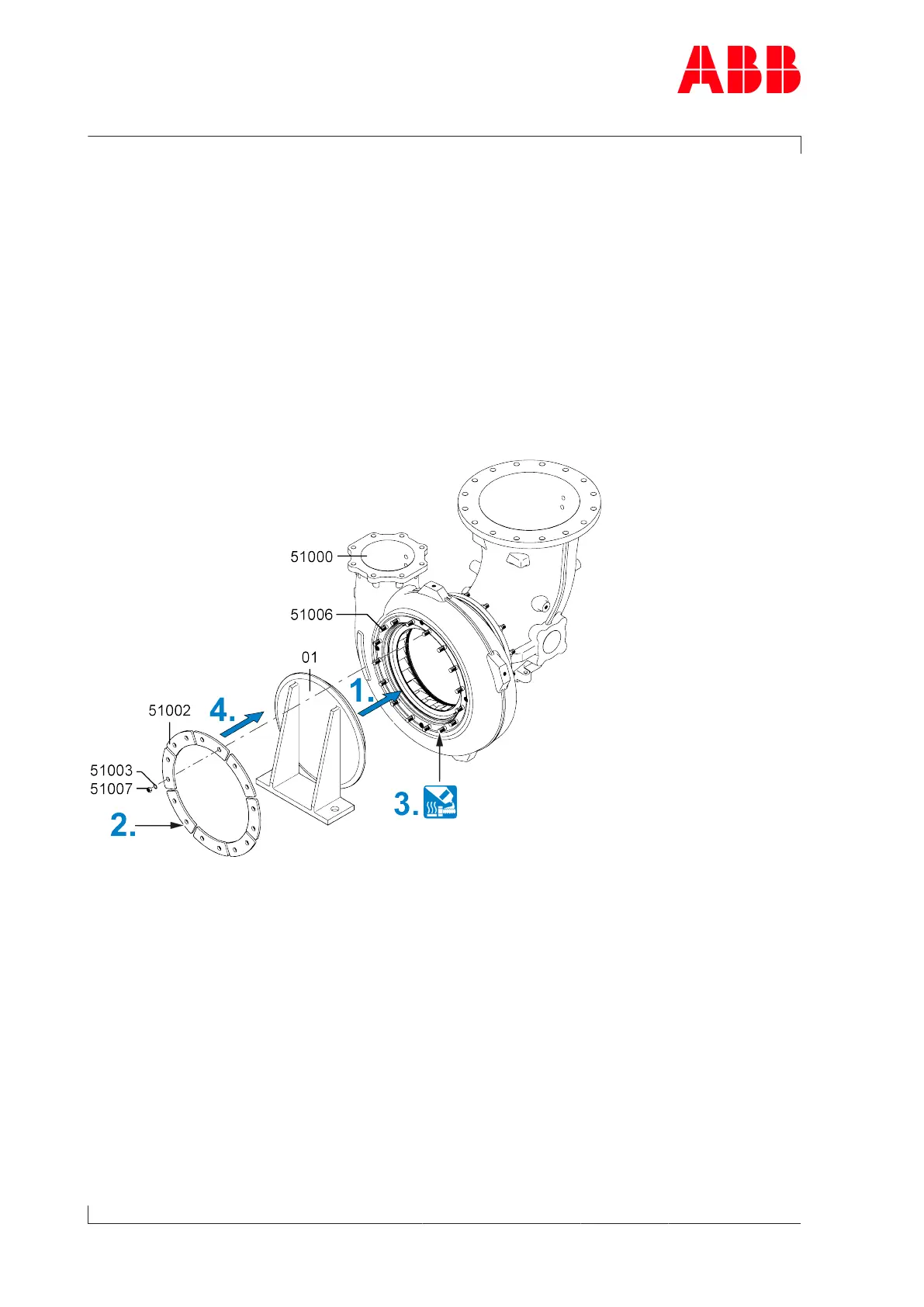

Fig.122: Fitting the cover plate

u Make sure that the oil connections in the bracket are equipped with gaskets.

1. Close opening in turbine casing(51000) with cover plate(01).

2. Thoroughly clean the fastening strips (51002) before assembly.

3. Coat the threads of the studs (51006) with high-temperature grease.

4. Fasten cover plate (01) to turbine casing (51000) with fastening strips (51002), Verbus

Ripp® washers (51003) and nuts (51007) and screw to bracket.

Page 152 / 171
