Operation Manual / 4 Product description / A150-M56/66/57/67 -

A155-M..

11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-

plication, special tools

11.1 Application, special tools

Removing the fastening strips

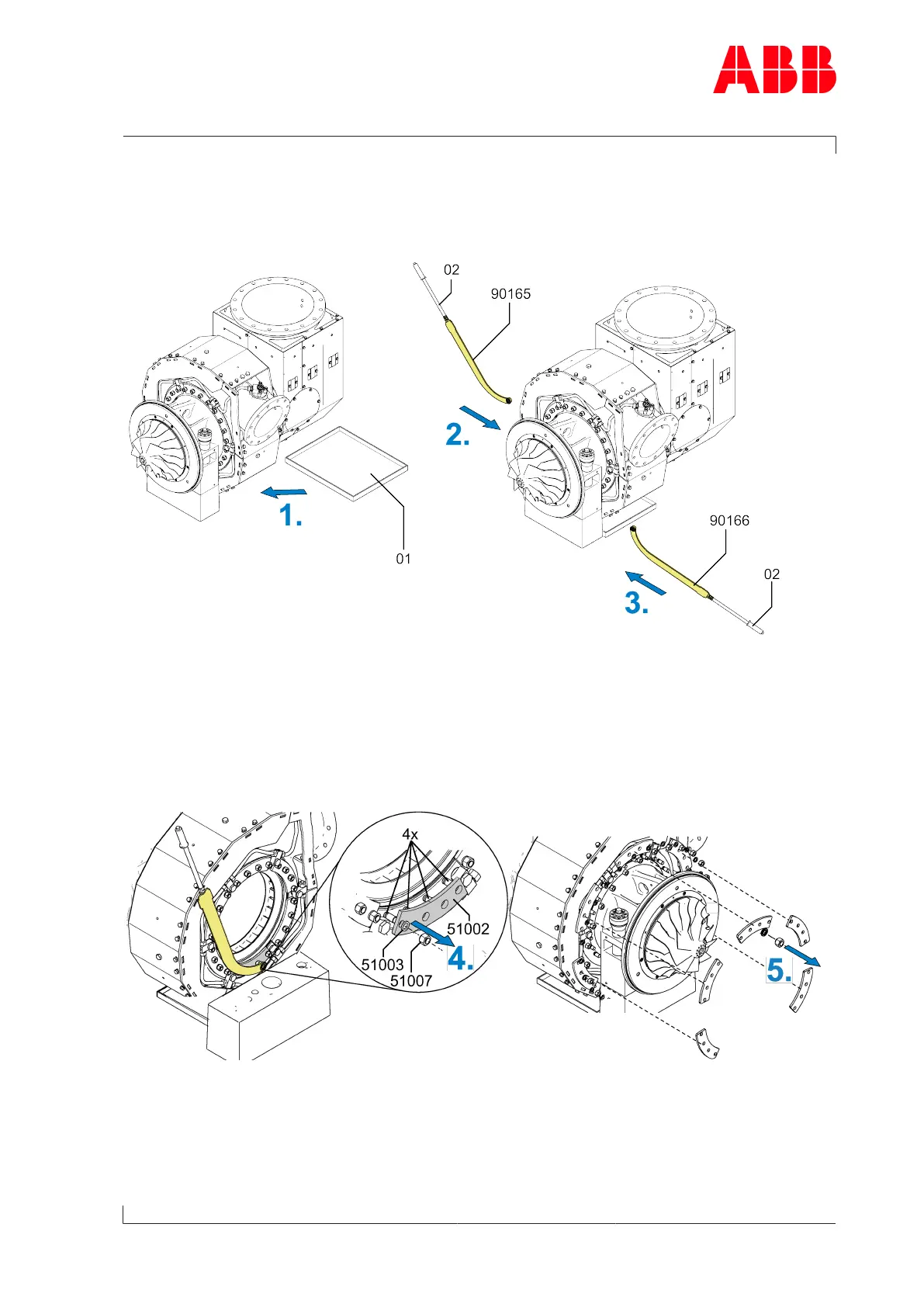

Fig.101: Positioning the collection tub

1. Position the collection tub (01) to catch any fixing elements if they fall.

2. Loosen the two nuts on one side by using the spanner holder (90165).

3. Loosen the two nuts on the other side by using the spanner holder (90166).

The cartridge group is fitted at this point in time. To enable a clear representation of the

work step, the cartridge group is not illustrated in work step 4.

Fig.102: Removing the fastening strips

4. Remove the nuts (51007) with spanner holder (90165/90166) and attached torque span-

ner (02). Remove washers (51003) and fastening strips (51002).

Any falling screw material will be caught in the collection tub (01).

Page 135 / 171
