ABB HT613913 - Fig. 16: Layout and Overview of the Speed Measurement System

Operation Manual / TPS44-H.. - TPS52-H..
5 Monitoring operation / 5.3 Turbocharger speed
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.G June 2021
5.3.2 Layout and overview

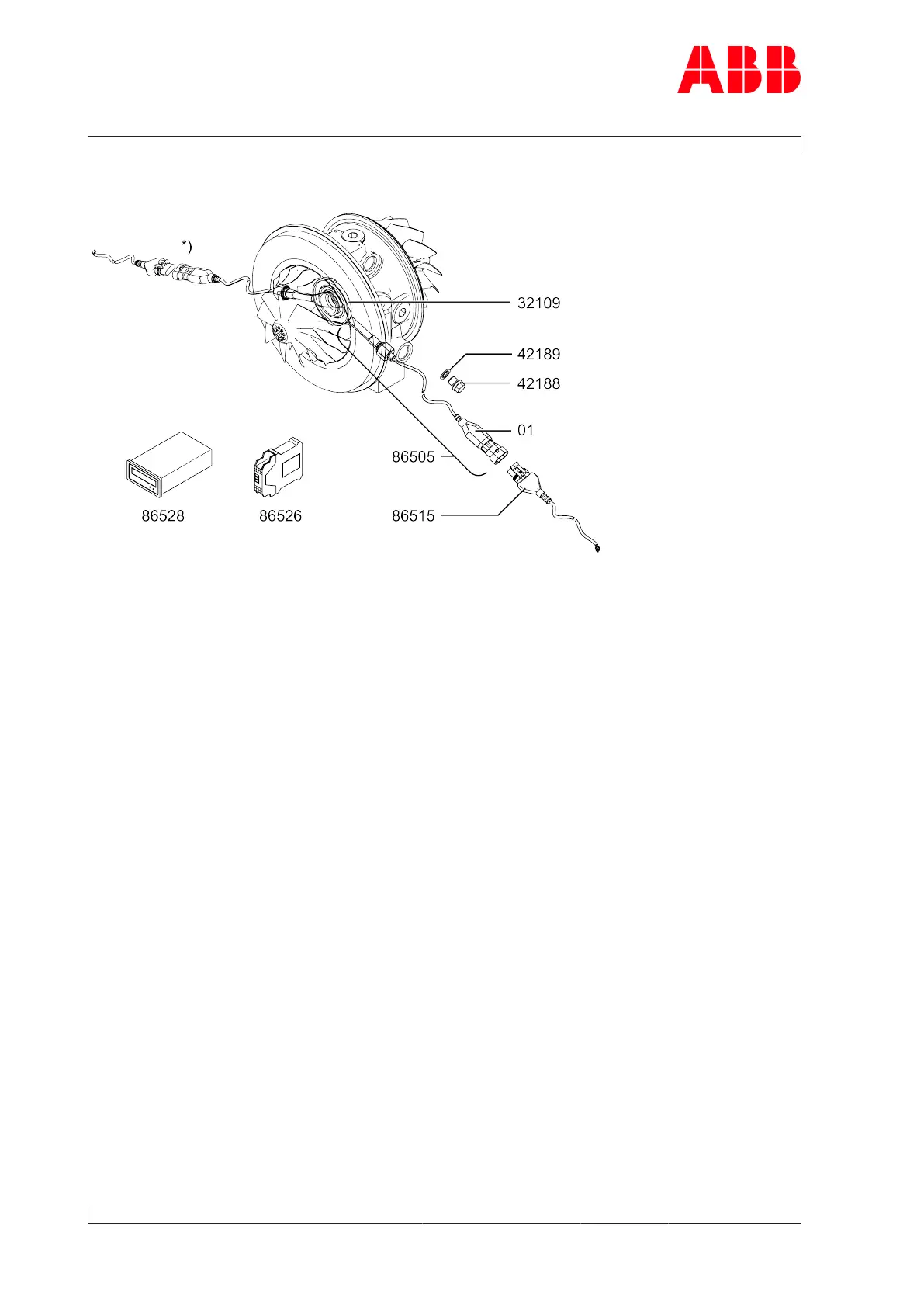

Fig.16: Layout and overview of the speed measurement system
86505 Speed sensor 42188 Screw plug
86515 Cable connector 42189 Gasket
86526 F/I converter 01 Plug with integrated voltage limiter
86528 Tachometer *) Alternative mounting position for speed
sensor
32109 Sealing disc
Page 42 / 109
