ABB HT613913 - Removing Nozzle Ring; Fig. 35: Removing the Nozzle Ring

Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.8 Removing nozzle ring
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.G June 2021
10.8 Removing nozzle ring

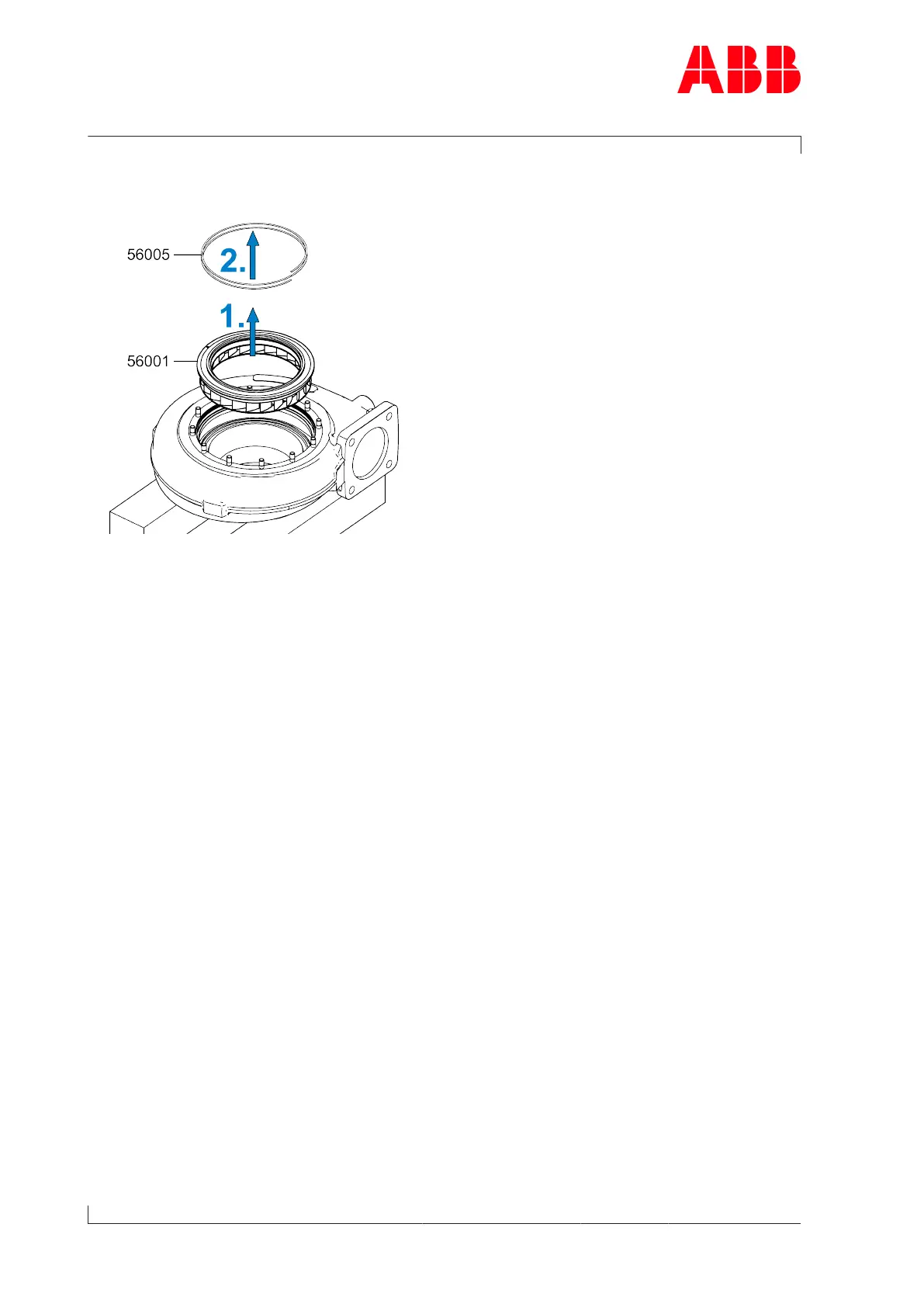

Fig.35: Removing the nozzle ring
1. Remove the nozzle ring(56001) vertically.
2. Remove the lamellar sealing ring (56005).
