Operation Manual / TPS44-H.. - TPS52-H..
6 Operation and service / 6.1 Noise emission
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021

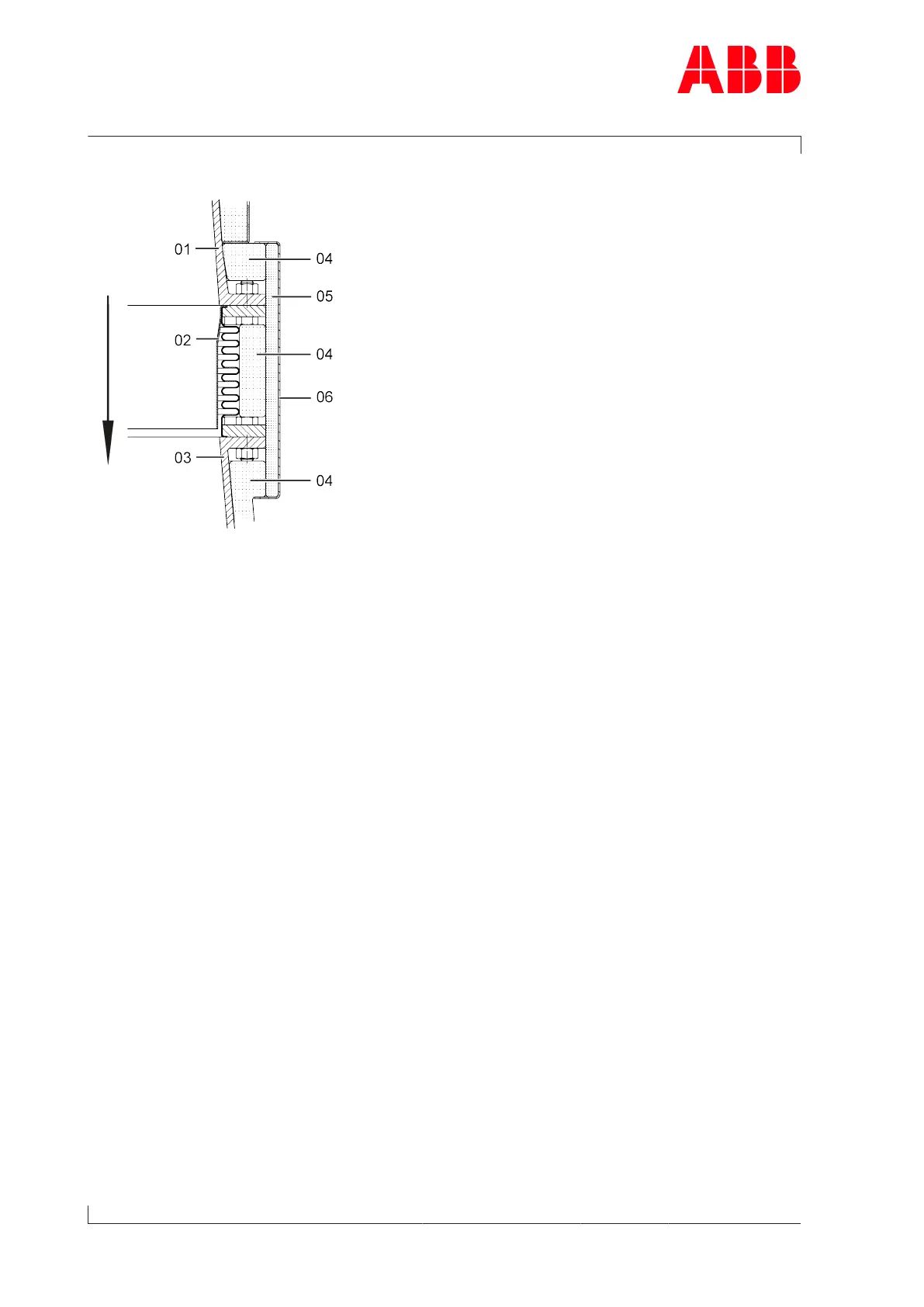

Suggestion for noise insulation, bellows
Fig.18: Noise insulation, bellows
01 Compressor casing
02 Bellows
03 Charge air duct / scavenging air duct
04 Insulation cushion
05 Insulation mat (at least 15 mm)
06 Sheet metal cover
