10.17 Installing the gas outlet casing

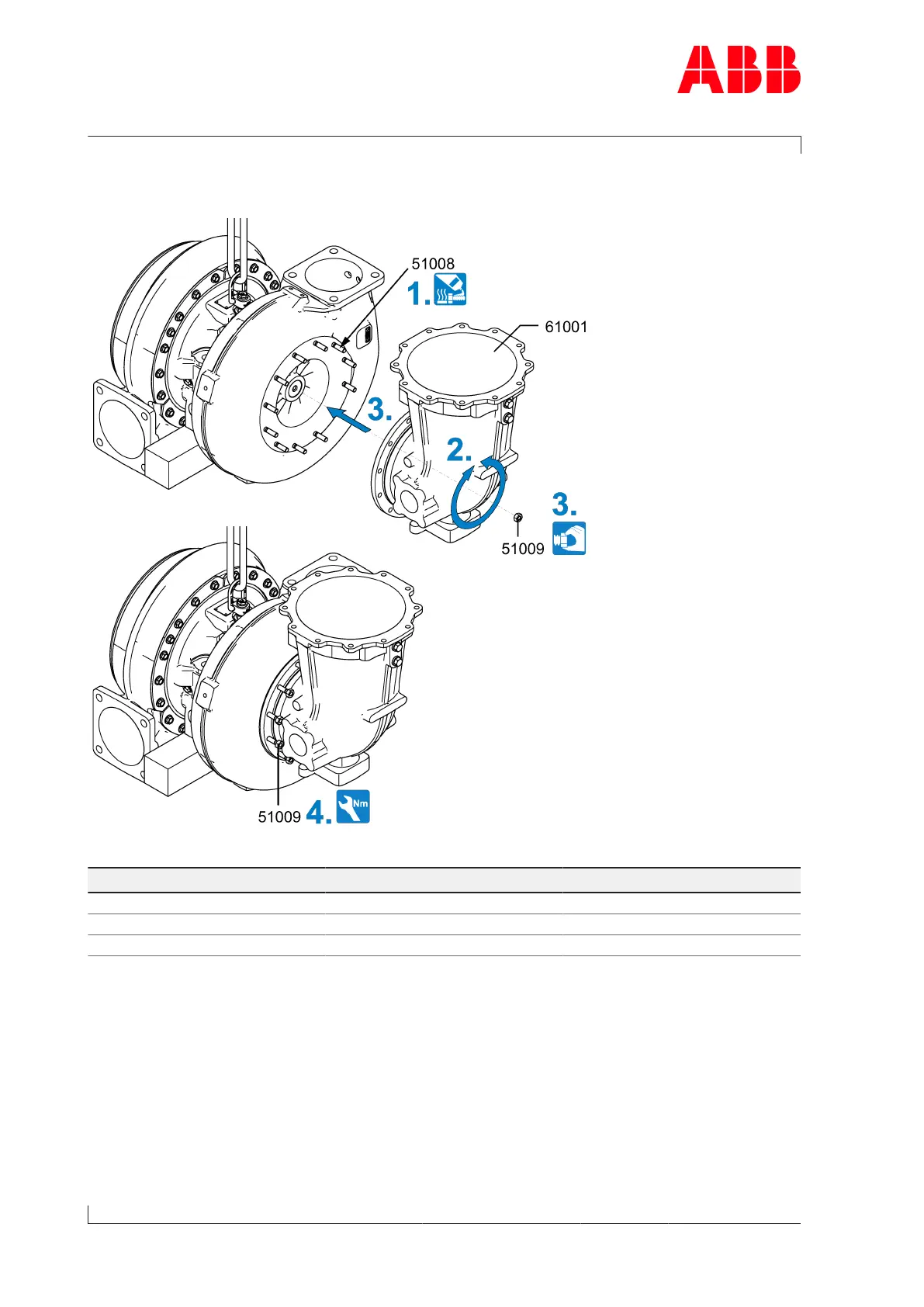

Fig.45: Fitting the gas outlet casing
Product Size Tightening torque [Nm]
TPS44 M8 25Nm
TPS48 M8 25Nm
TPS52 M10 50Nm
Table41: Tightening torque (51008)
1. Coat thread of studs(51008) with high-temperature grease.
2. Align the casing position of the gas outlet casing(61001) to the marking.
3. Position the gas outlet casing and fit with two hexagon nuts(51009) in the upper area.
4. Fit the remaining hexagon nuts(51009), then tighten all the screws. Observe tightening
torque.
