ABB HT613913 - Fig. 26: Removing the Gas Outlet Casing; Removing the Gas Outlet Casing

Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.4 Removing the gas outlet casing
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.G June 2021
10.4 Removing the gas outlet casing
u Mark the casing position for assembly.

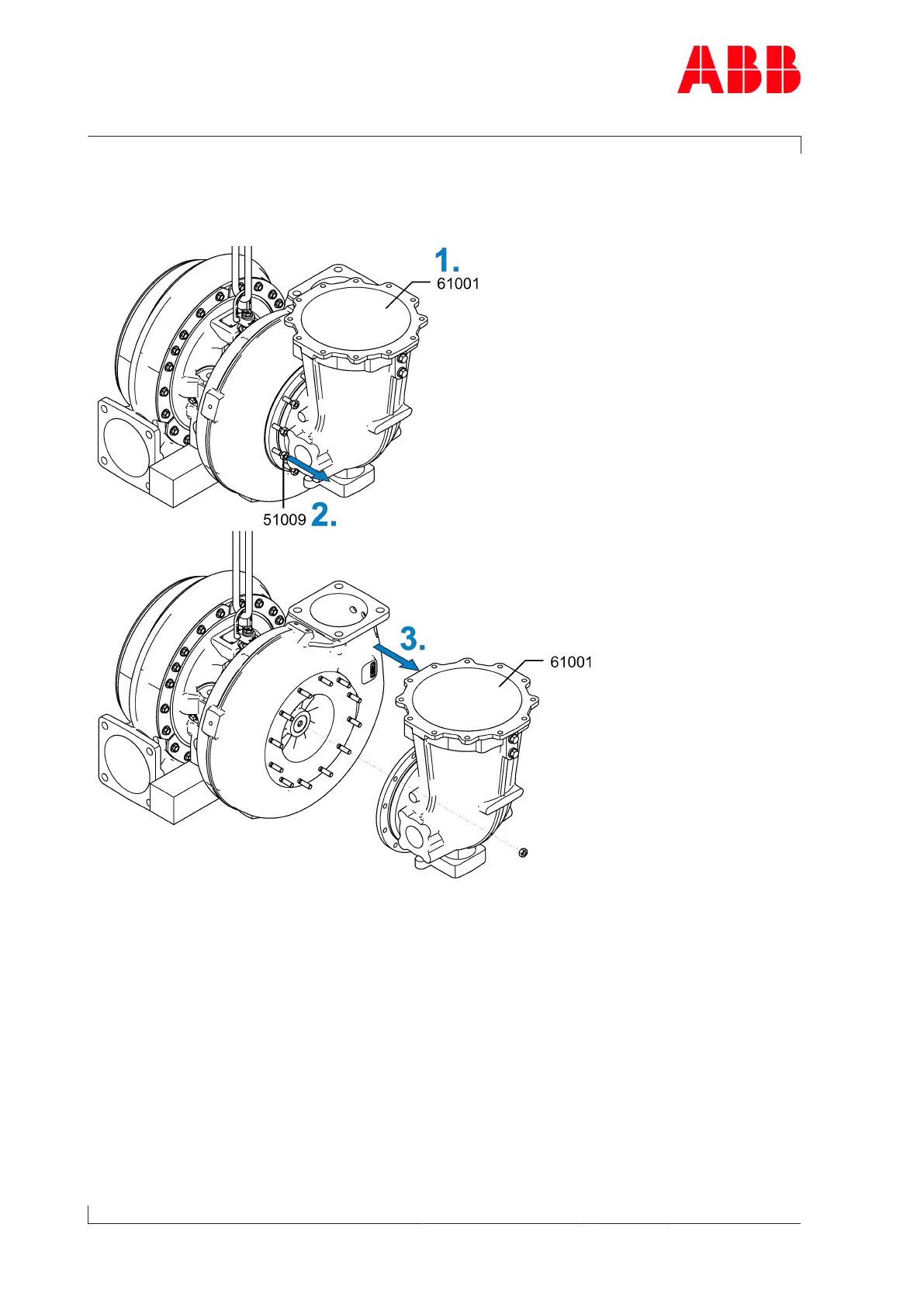

Fig.26: Removing the gas outlet casing
1. Manually secure the gas outlet casing(61001).
2. Loosen and remove hexagon nuts(51009).
3. Remove the gas outlet casing(61001).
