10.11 Fitting the diffuser

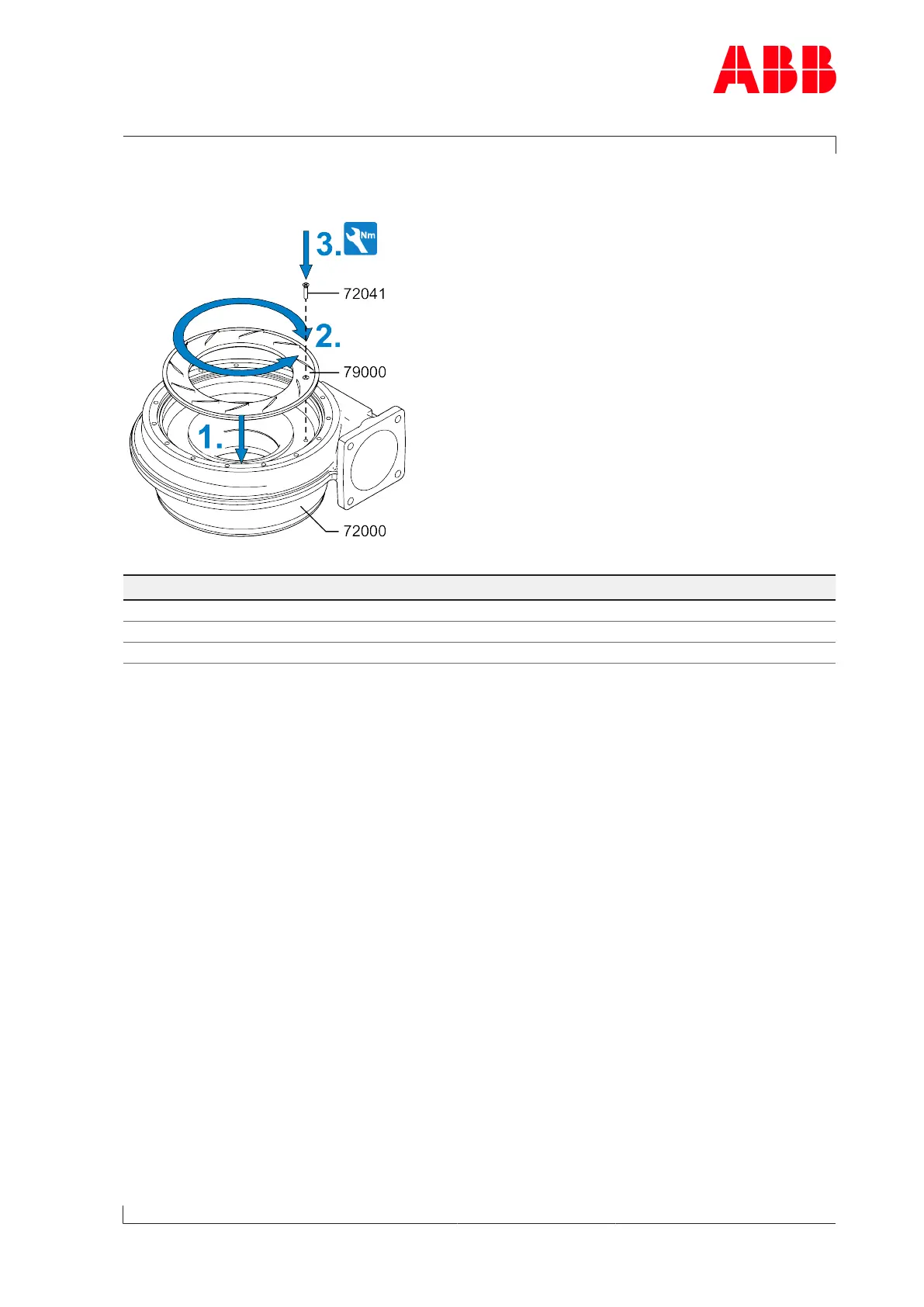

Fig.38: Fitting the diffuser
Product Size Tightening torque [Nm]
TPS44 M5 5Nm
TPS48 M5 5Nm
TPS52 M6 10Nm
Table37: Tightening torque (72041)
1. Position the diffuser(79000) in the compressor casing(72000).
2. Rotate the diffuser until its bore is aligned with the bore in the compressor casing.
3. Fit and tighten screw(72041).
Page 83 / 109
