Operation Manual / TPS48-D/E.. - TPS61-D/E..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2410_EN Rev.F March 2020

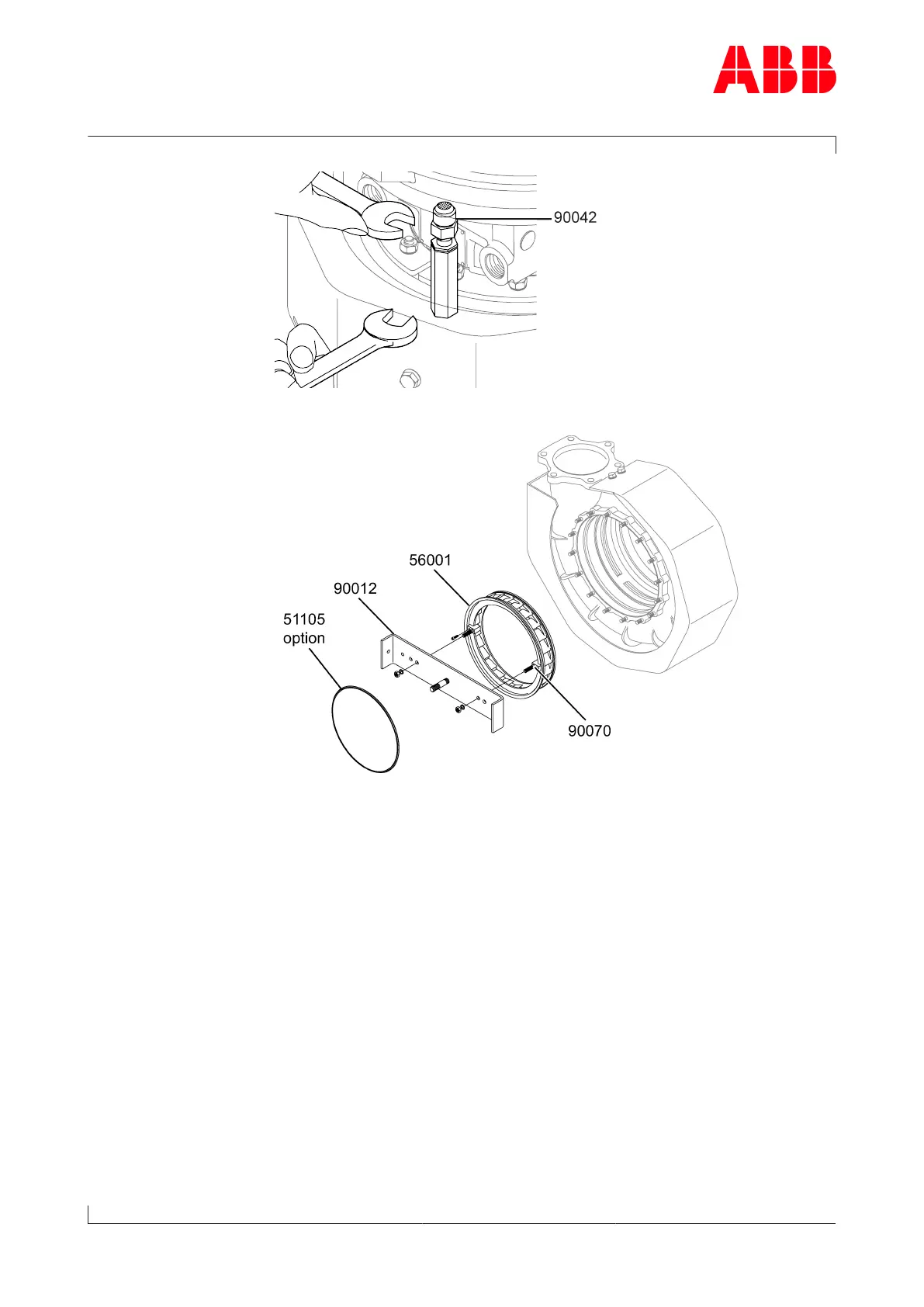

u Withdraw nozzle ring (56001) using two extraction devices (90070)
and withdraw bottom part of service support (90012).
If provided
u Remove C-ring (51105).
Page 86 / 111
