Operation Manual / TPS48-D/E.. - TPS61-D/E..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2410_EN Rev.F March 2020

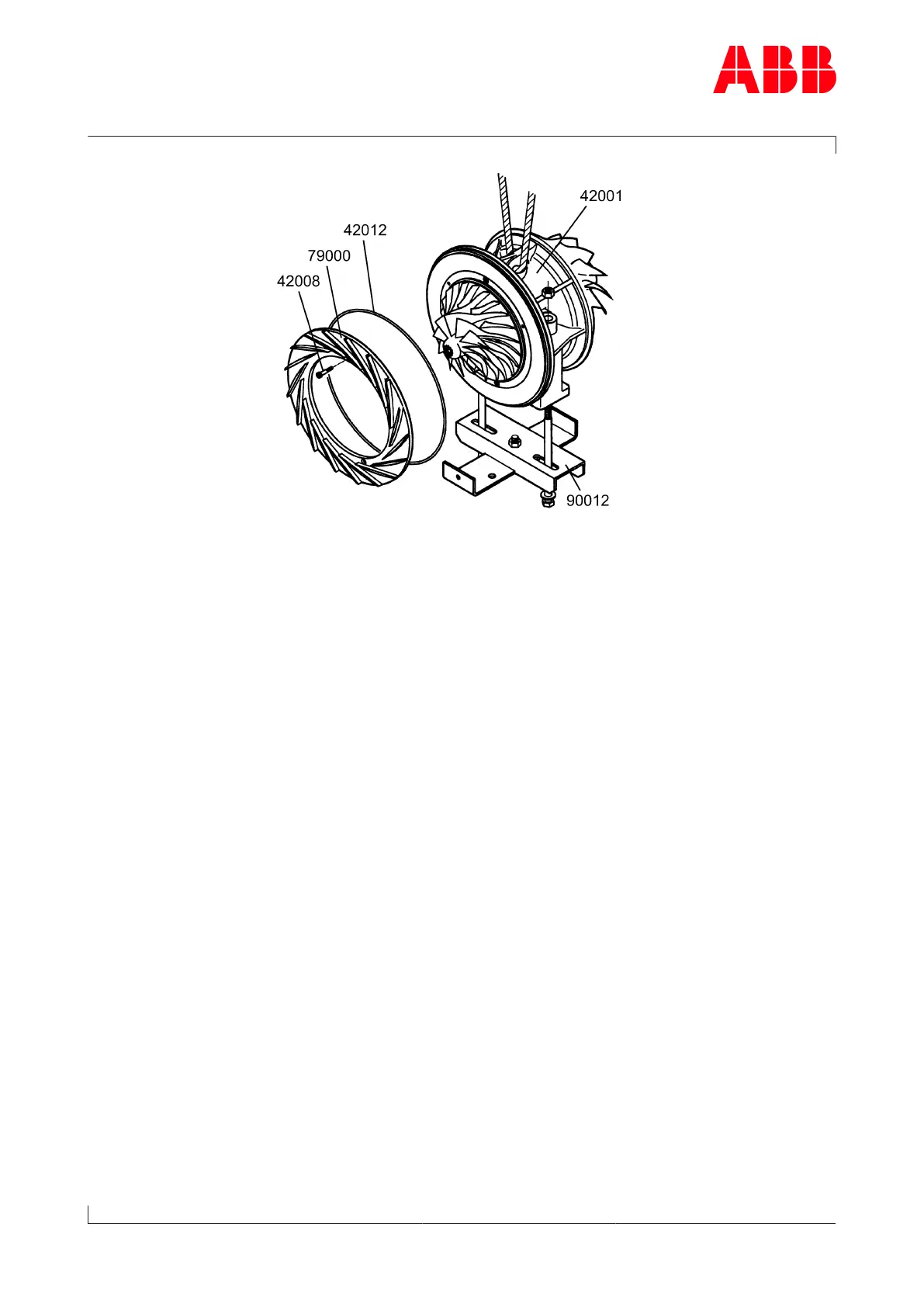

Removing the diffuser
u Put cartridge group (42001) on service support (90012) and secure us-
ing bolts.
u Remove screw (42008) and remove diffuser (79000) complete with O-
ring (42012).
u Measure axial and radial clearances. (See section Axial and radial
clearances.)
Page 87 / 111
