ABB InCharge Terra 184 User Manual

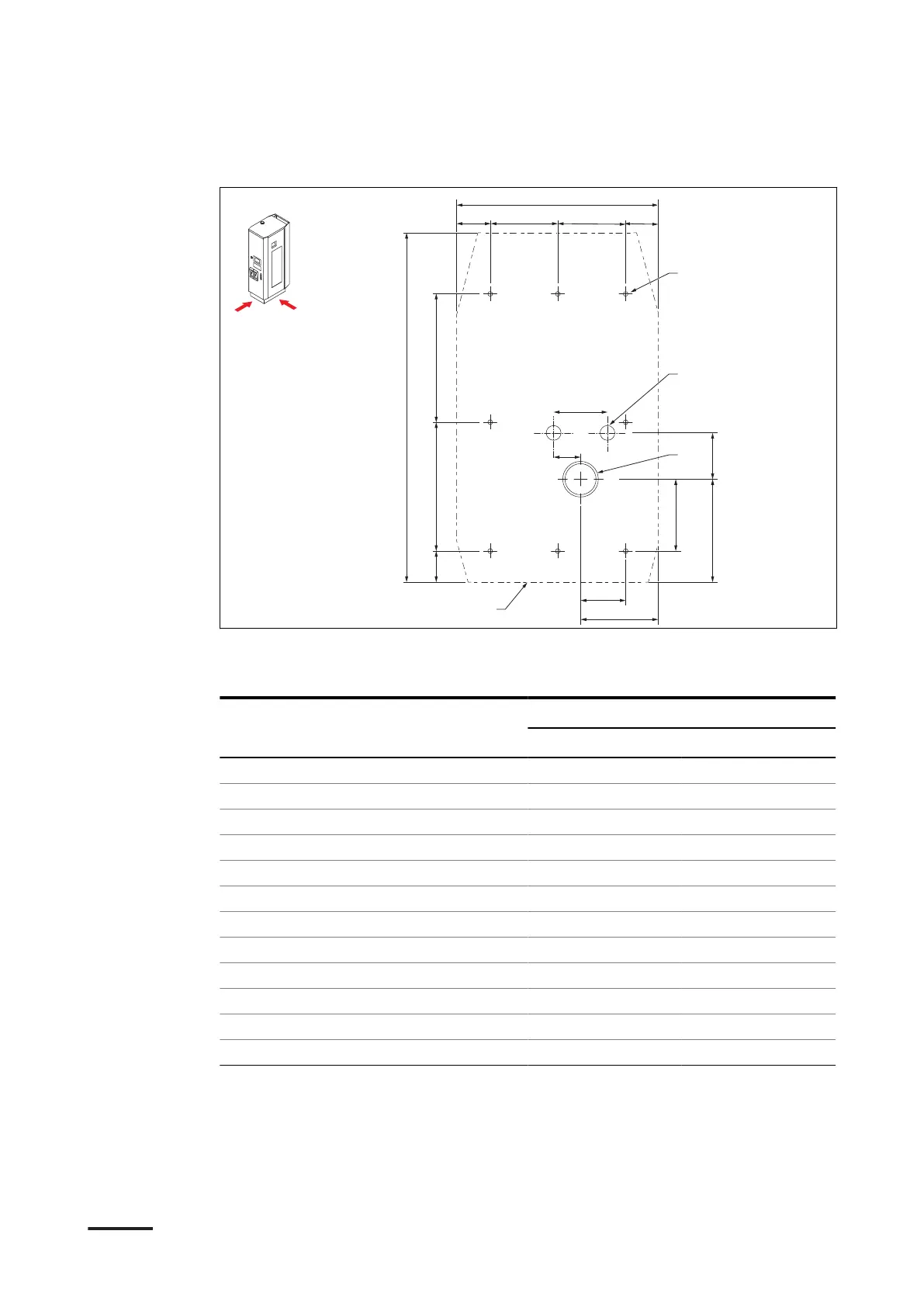

10.12.6 Casted foundation
X2
X1
X3 X3 X2
Y2
Y1
Y3 Y3
X6
X5
X7
Y4
Y5 Y6
C
B
A
D
X4
Y
X
A Holes to install the fasteners of the
EVSE
B Conduit stub up
C Addtional holes
D Front of the EVSE
Parameter Specification
[mm] [in]
A M10, depth 60 M10, depth 2.4
B 25-50 1-2
C 50-75 2-3
X1 565 22.2
X2 36.5 1.4
X3 189 7.4
X4 106 4.2
X5 53 2.1
Y1 880 34.6
Y2 125 4.9
Y3 324 12.8
Y6 160 6.3
Technical data
9AKK108466A3703-EN | 001 83

ABB InCharge Terra 184 Specifications

General

Type	DC Fast Charger
Product Type	EV Charger
Input Voltage	400 V AC
Operating Temperature	-30°C to +50°C
Protection Class	IP54
Input Current	32 A
Number of Outlets	1
Output Current	32 A
Efficiency	> 95%
Charging Standards	CCS, CHAdeMO
Communication Interface	Ethernet, 4G
