Mounting / Installation
| — 14 —
1. The bottom of the device has screw holes for fastening on the wall according to
the above dimension instructions.
2. In addition, the bottom of the device can be fixed to the existing flush-mounted box.
The dimension of the compatible flush-mounted box is shown above.

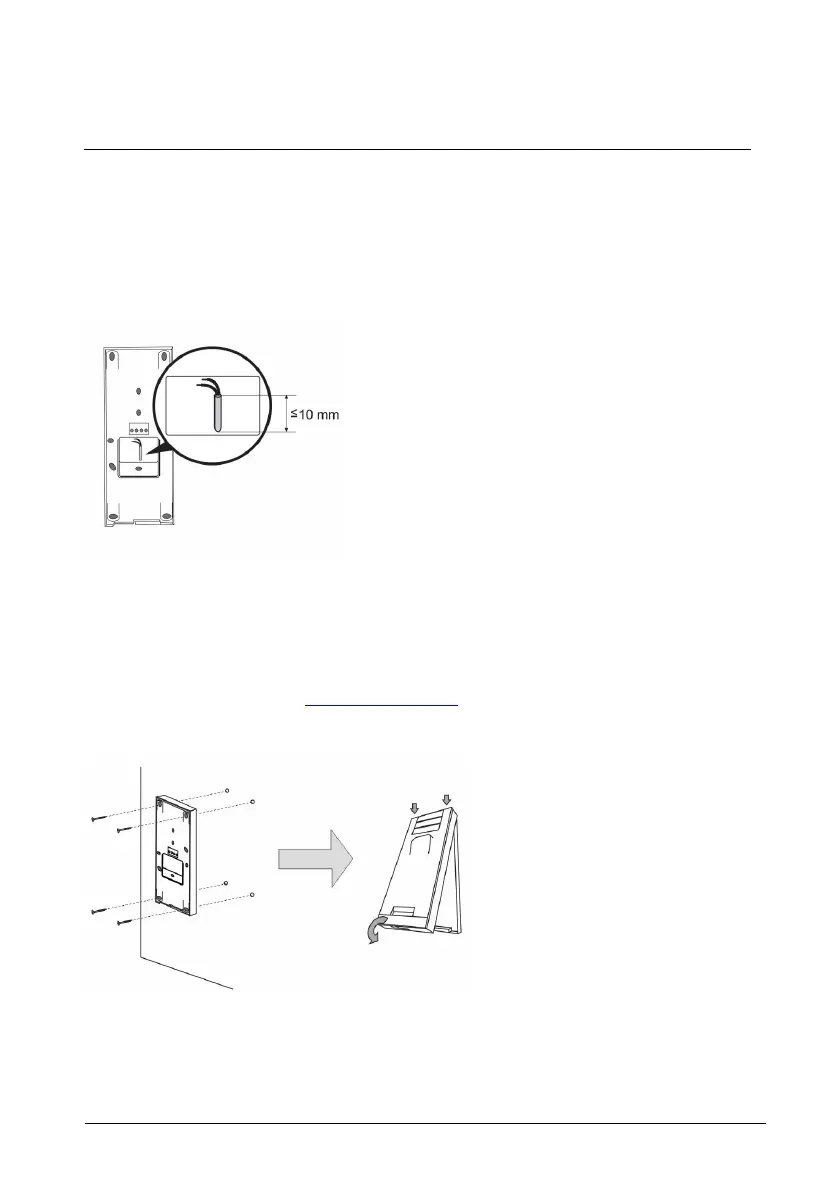

Wiring
Fix the bottom of the device and connect it with reference to the graphics. The insulated
section of the cable end must not be longer than 10mm.
Settings
Set addresses for the preferred outdoor stations and the address for the indoor station
on the jumper (see chapter “ Adjusting the device ”).
Mounted on the wall
1. Fix the bottom of the device to the wall.
2. Latch the upper part of the device onto its bottom part: place the upper side of the
device on the lock-in lugs and then press the bottom side onto the bottom part of
the device until it is caught by the clamp.
