Mounting / Installation

| — 15 —

Mounted with flush-mounted box

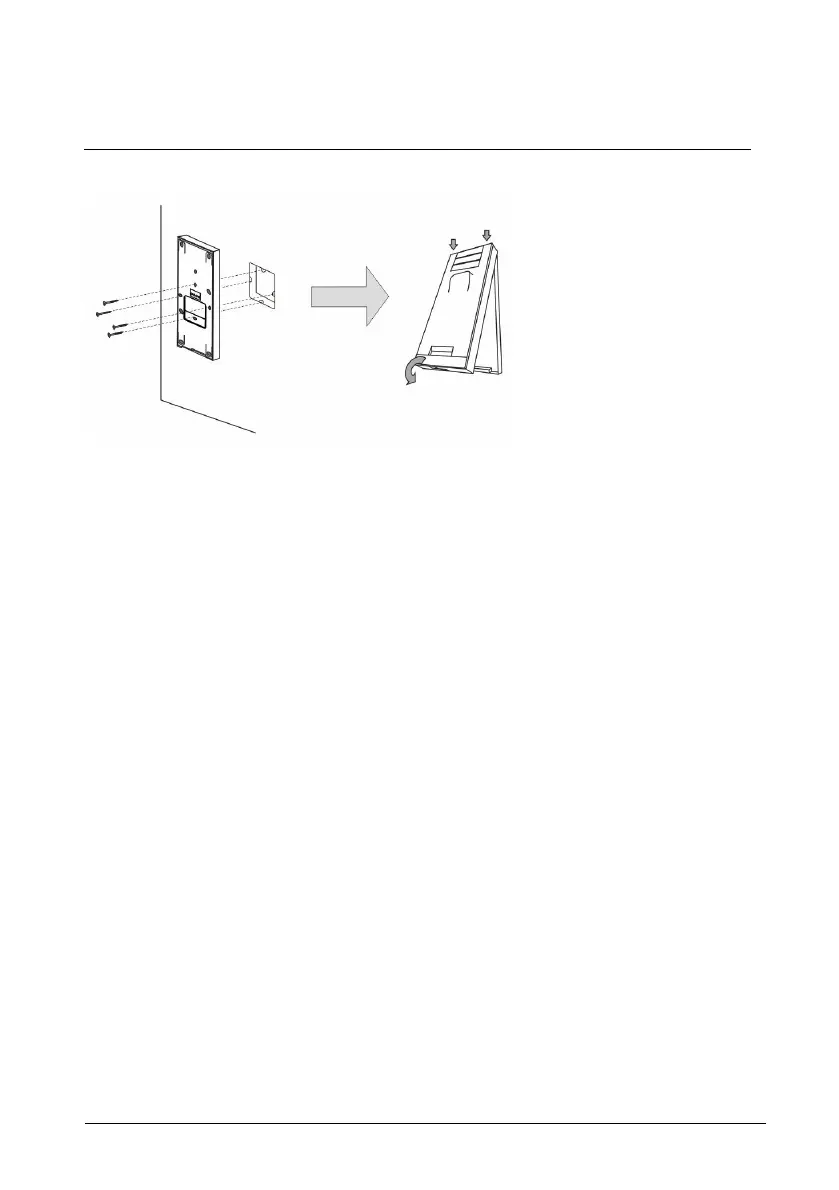

1. Fix the bottom of the device to the existing flush-mounted box.

2. Latch the upper part of the device onto its bottom part: place the upper side of the

device on the lock-in lugs and then press the bottom side onto the bottom part of

the device until it is caught by the clamp.

The installation of the indoor station is now complete.
