02.PRODUCT OVERVIEW
Analogue Output Module AO11
Analogue output module AO11 is an optional
add-on module to main unit, providing one
channel 0-20mA or 4-20mA analogue output.
Details of AO11 module including how to do the
configuration is provided in a separate
document, 1TNC 920204 M10x AO Module User
Guide.
M10x-TCP Ethernet module EM01
Ethernet module EM01 is the dedicated
Modbus TCP interface to M10x-TCP. It provides
two Ethernet ports. Details of M10x-TCP is de-
scribed in 1TNC 928239 M10x-TCP User Guide.
M10x material
The enclosure of the M10x is made of
polycarbonate. Flammability rating of the
material is UL 94 V-0 and material is halogen free.
Color of the enclosure is RAL 7012.
—

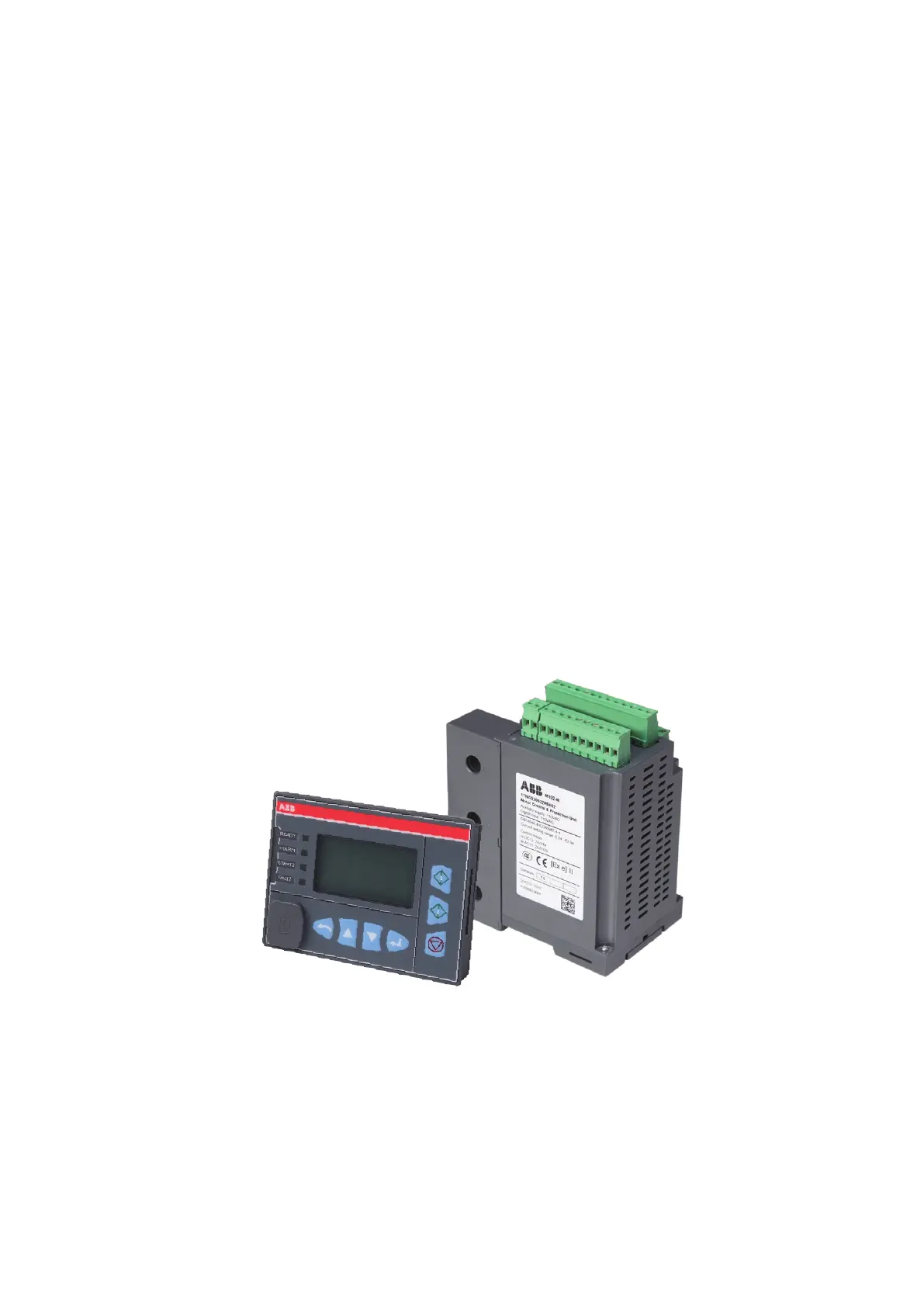

01 M10x and MD21
