ABB MS116 - Type MS450-MS497 Series Ratings; MS450 Series Horsepower Ratings; MS495 Series Horsepower Ratings; MS497 Series Horsepower Ratings

5
5
Manual
motor protectors
Low Voltage Products & Systems 5.15
ABB Inc. • 888-385-1221 • www.abb-control.com AC 1000 - 11/03

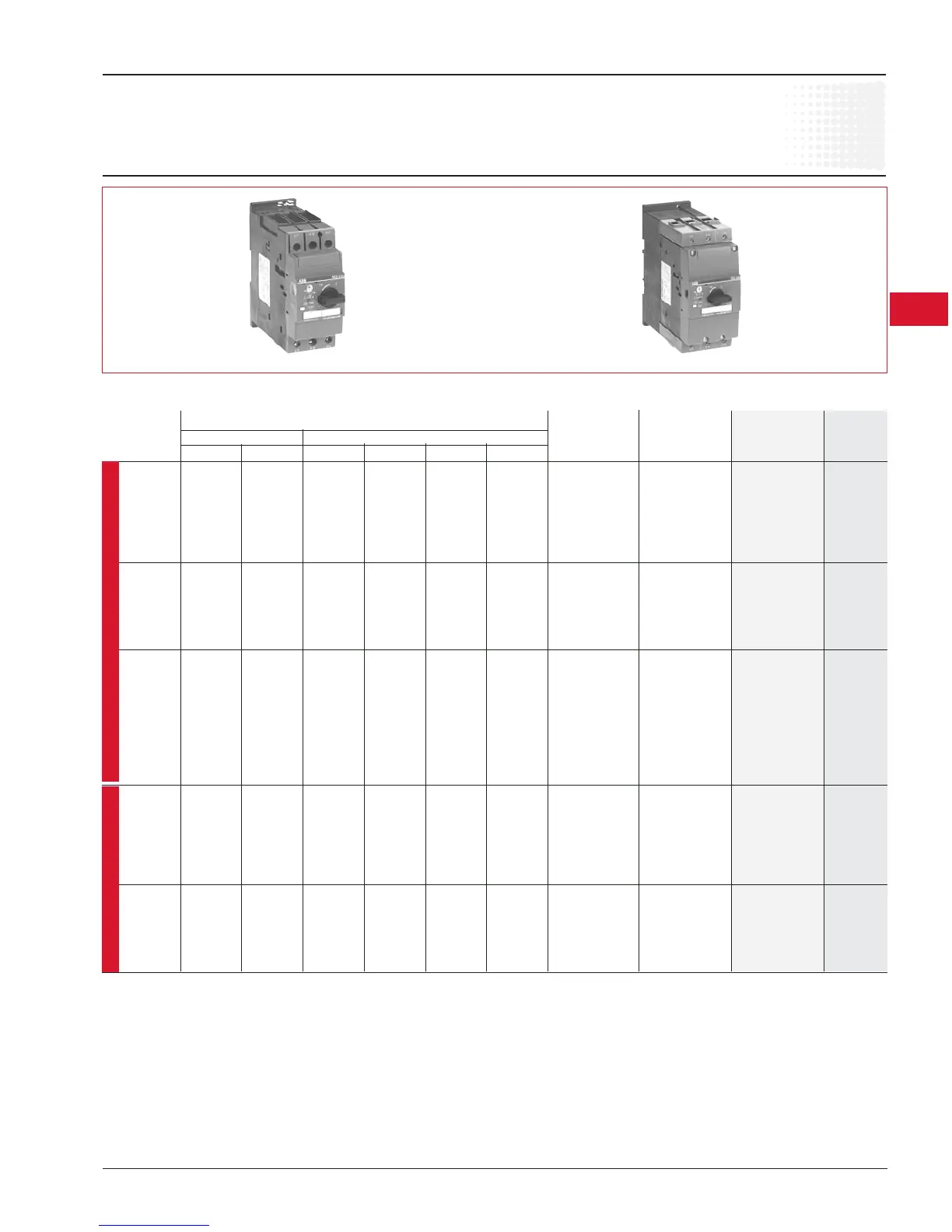

Type MS450 – MS497
MS450 MS497
Manual motor starters
FLA
adjustment
range
1 Single phase motor ratings are based upon wiring all three poles in series.
2 Maximum motor current 95A.
Discount schedule MA
Weight Availability Catalog List
(lbs) code number price
Horsepower ratings
Single-phase
1 Three-phase
115V 230V 200V – 208V 230V 460V 575V
Availability code
A – Standard item, stock to two weeks lead time
B – Stock to four weeks lead time
C – 4 to 6 weeks lead time
UL File # E167205
MS450
11 – 16 1 3 5 5 10 15 2.12 A MS450-16 $ 450
14 – 20 1.5 3 5 7.5 15 20 2.12 A MS450-20 450
18 – 25 2 5 7.5 10 20 25 2.12 A MS450-25 450
22 – 32 3 5 10 10 25 30 2.12 A MS450-32 450
28 – 40 3 7.5 15 15 30 40 2.12 A MS450-40 510
36 – 45 5 7.5 15 15 30 40 2.12 A MS450-45 510
40 – 50 5 10 15 20 40 50 2.12 A MS450-50 510
MS495
28 – 40 3 7.5 15 15 30 40 4.63 A MS495-40 562.50
36 – 50 5 10 15 20 40 50 4.63 A MS495-50 562.50
45 – 63 5 15 20 25 50 60 4.63 A MS495-63 562.50
57 – 75 7.5 15 25 25 60 75 4.63 A MS495-75 600
70 – 90 10 20 30 30 75 100 4.63 A MS495-90 615
80 – 100 10 25 40 40 75 100 4.63 A MS495-100 690
MS497
11 – 16 1 3 5 5 10 15 2.12 B MS497-16 450
14 – 20 1.5 3 5 7.5 15 20 2.12 B MS497-20 450
18 – 25 2 5 7.5 10 20 25 2.12 B MS497-25 450
22 – 32 3 5 10 10 25 30 2.12 B MS497-32 450
28 – 40 3 7.5 15 15 30 40 4.63 B MS497-40 562.50
36 – 50 5 10 15 20 40 50 4.63 B MS497-50 562.50
45 – 63 5 — 20 25 50 60 4.63 B MS497-63 562.50
57 – 75 7.5 — 25 25 60 75 4.63 B MS497-75 600
70 – 90 10 — 30 30 75 100 4.63 B MS497-90 615
80 – 100 10 — 30 40 75 100 4.63 B MS497-100 690
MS451
11 – 16 1 3 5 5 10 15 2.12 B MS451-16 450
14 – 20 1.5 3 5 7.5 15 20 2.12 B MS451-20 450
18 – 25 2 5 7.5 10 20 25 2.12 B MS451-25 450
22 – 32 3 5 10 10 25 30 2.12 B MS451-32 450
28 – 40 3 7.5 15 15 30 40 2.12 B MS451-40 510
36 – 45 5 7.5 15 15 30 40 2.12 B MS451-45 510
40 – 50 5 10 15 20 40 50 2.12 B MS451-50 510
MS496
28 – 40 3 7.5 15 15 30 40 4.63 B MS496-40 562.50
36 – 50 5 10 15 20 40 50 4.63 B MS496-50 562.50
45 – 63 5 15 20 25 50 60 4.63 B MS496-63 562.50
57 – 75 7.5 15 25 25 60 75 4.63 B MS496-75 600
70 – 90 10 20 30 30 75 100 4.63 B MS496-90 615
80 – 100
2 10 25 40 40 75 100 4.63 B MS496-100 690
Overload tripping class 10Overload tripping class 20
