ABB PowerValue 11T G2 Series User Manual

16
POWERVALUE 11T G2 1-3 KVA B/S
—
07
—
07 The line mode
—
4 Operation
4.1.1 Operating modes and strings
Different messages/strings are displayed on
the LCD screen corresponding to different
UPS operating modes, as shown in Table 9.
—
Table 9: Operating modes and strings
Operating mode Code
No output mode STbY
Bypass mode bYPA
Line mode LINE
Battery mode bATT
Battery test mode TEST
ECO mode ECO
Converter mode CVCF
4.1.2 Warnings and fault strings
Additionally, different strings, as shown in
Table 10 display with a particular warning or fault.
Only one normal operating string or fault string
is presented at a time. However, if several
warnings happen at the same time, they display
on the LCD alternately. In this case, the normal
operating mode string and the warning string
will be shown alternately. Once a fault occurs,
all previous warnings will not be shown again;
only the fault string will be presented.
—
Table 10: Warning and fault codes
Warning SITE
Site fail SITE
Fan fail FANF
Battery over voltage (over
charged)
HIGH
Battery low bLOW
Charge fail CHGF
Inverter temperature high TEPH
Battery open bOPN
Overload OVLD
Digital bigger charger fail dCHF
Inner temperature high ITPH
Fault String
Inverter short SHOR
Overload fault OVLD
Inverter soft start fail ISFT
Bus soft start fail bSFT
Over temperature fault OVTP
Inverter Volt Low INVL
Inverter Volt High INVH
Bus volt over bUSH
Bus volt Low bUSL
Bus short bUSS
Inverter NTC open NTCO
Emergency Power Off EPO
4.1.3 Line mode (LINE)
NOTE
EACH MODE DISPLAYS INFORMATION
ABOUT THE MAINS POWER, THE BATTERY
LEVEL, THE UPS OUTPUT, AND THE
LOAD LEVEL.

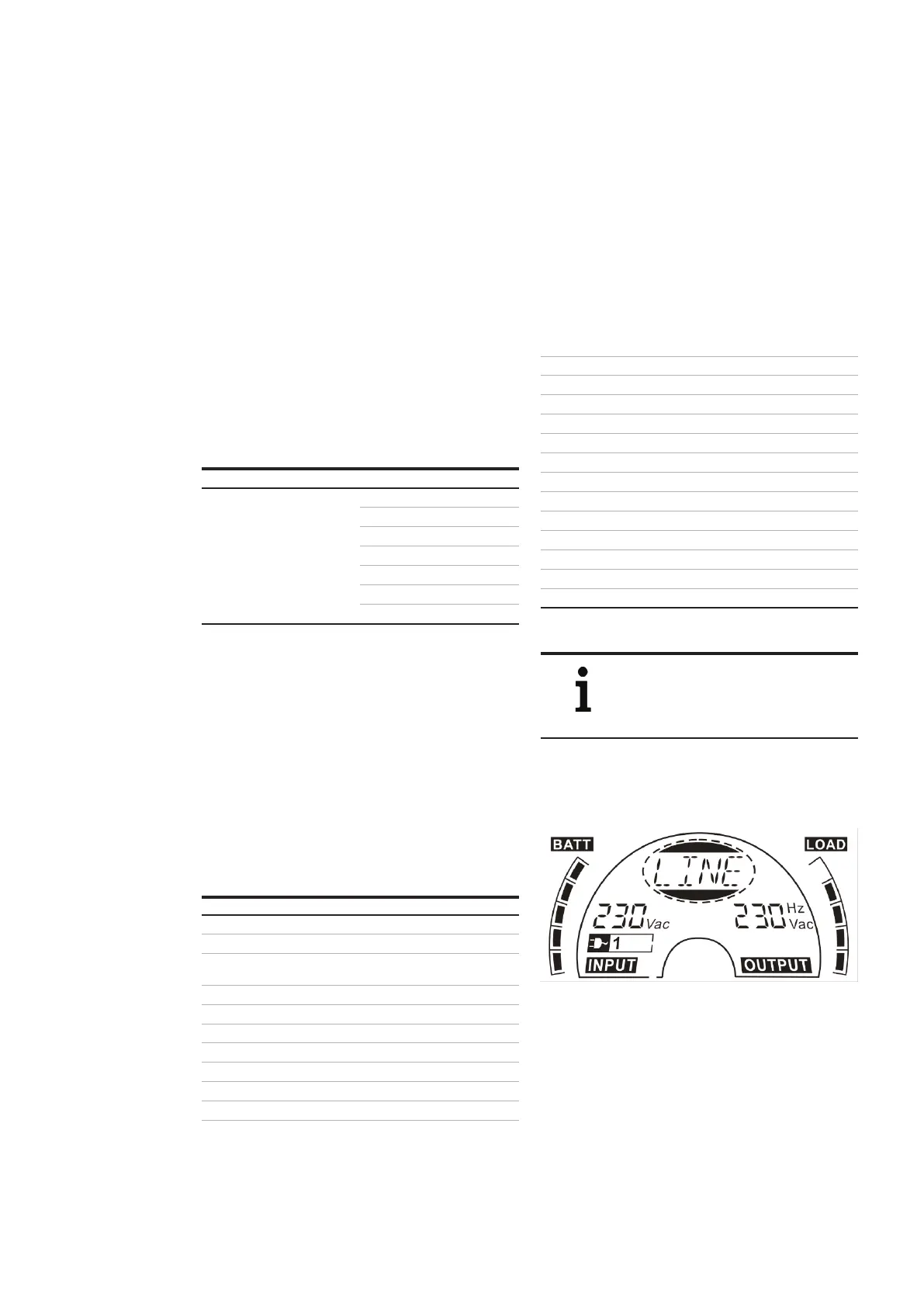

The LCD display in Line mode is shown as Figure 7.
The “LINE” string indicates the UPS is working in
Line mode.
—
4.1 Operating modes for all models
