70 Human machine interface (HMI) | Installation and commissioning manual | 1SFC132081M0201
6.4.6.2 Date and time
Path in menu:
Menu
XSettings XDate and time
For navigation see Figure 6.37.
Date and Time settings include all date and time
configurations for the Softstarter.
To change the settings in the Date and Time menu,
push “Edit” to enter the setting. Push “Save” to save
the set value. See Figure 6.38.
Table 7 Date and time settings
Option Function
Date Set date: Day, month and year.
Time Set time: Hour, minutes and
seconds.
Show date as Show the date at top level in this
format:
CE day . month . year
US month/day/Year
SO year–month–day
Show time as Show the time in 12-hour or
24-hour
Show clock Show clock On / Off
Real time clock
The Real time clock is the local time in the Softstarter.
The clock runs 2 hours after control supply power is
turned off. Set date and time again if a longer power
failure occurs.
When the configuration of the time setting is completed,
push
“Back” 3 times to go back to the Home view,
top level.
6.4.6.3 Display settings
Path in menu:
Menu
XSettings XDisplay settings
For navigation, see Figure 6.39.
The Display settings include all display configurations of
the Softstarter. To change the Display settings, Push
“Edit” to enter the setting level. Push
“Save” to save
the set value.
Table 8 Display settings
Option Function
Contrast Set the contrast intensity
0 ... 100%
Brightness Set the brightness intensity
0 ... 100%
Power save Turn off the display backlight after
30 minutes, 1, 2, or 5 hours or
Never
White on black White on black display On / Off
Settings
Language
Date and time
Display settings
Reset to defaults
MENU
Parameters
Assistants
Motor jog
Pump cleaning
Event log
Backup handling
System info
Settings
Date and time
Date:
27.06.2014
Time: 12:00:00
Show date as: day.month.year
Shoe time as: 24-hour
[ ] Show clock

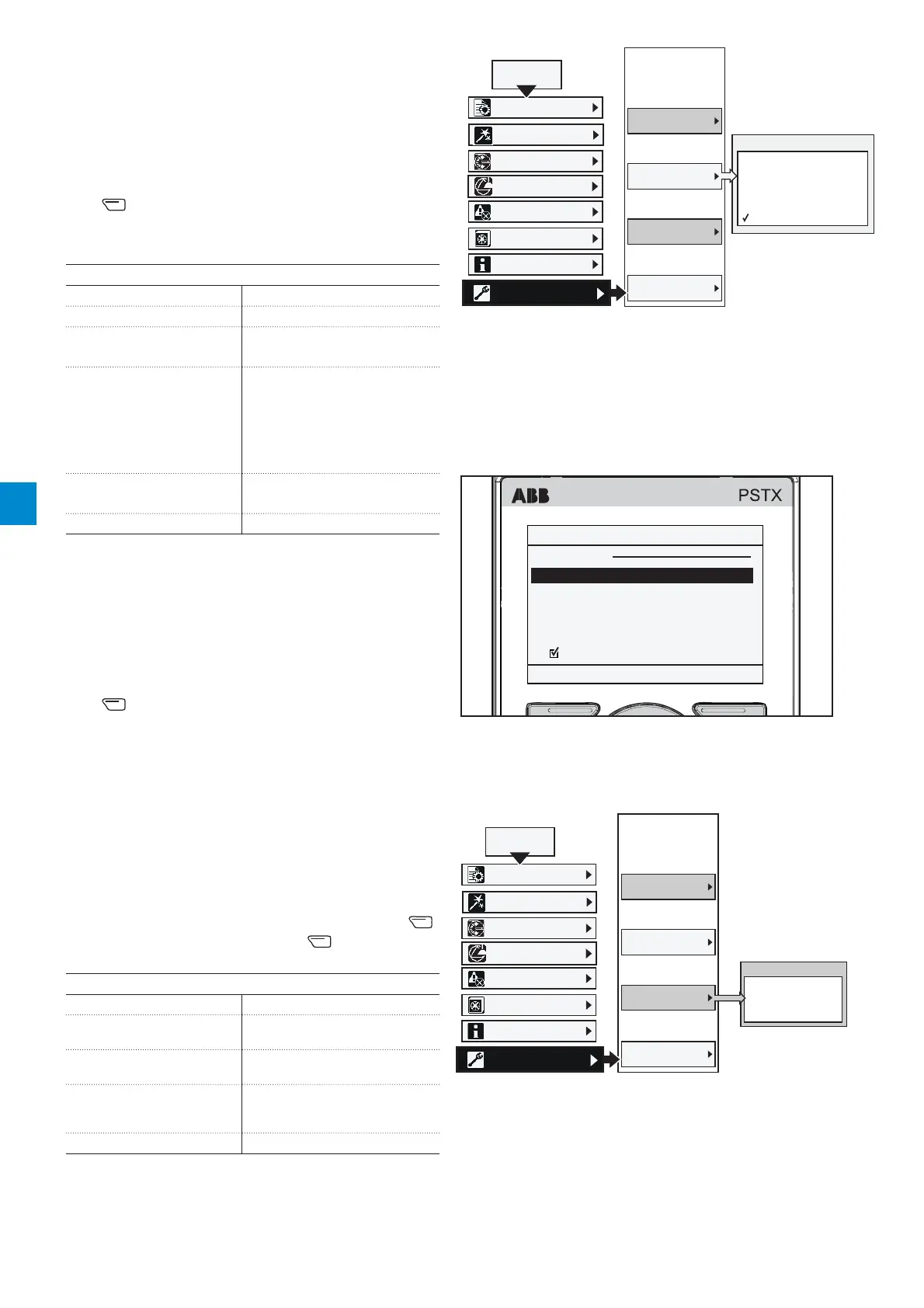

Figure 6.37
Date and time
Figure 6.38
Date and time menu
1SFC132081M0201
Local PSTX
Date & Time
Date 27.06.2014
Time 12:00:00
Show date as day.month.year
Show time as 24-hour
Show clock
Back 12:00 Edit
Settings
Language
Date and time
Display settings
Reset to defaults
MENU
Parameters
Assistants
Motor jog
Pump cleaning
Event log
Backup handling
System info
Settings
Display settings
Contrasts 80 %
Brightness 80 %
Powersave
[ ] White on black
Figure 6.39
Display settings
