ABB REM615 ANSI 5.0 FP1 User Manual

12 REM615 ANSI 5.0 FP1 MOTOR PROTECTION AND CONTROL
52 52
Δ
Y
52
REF615 Conf L
67P/51P/50P
50BF
67G/51G/50G
27
27R via
IEC 61850-9-2LE
25 via IEC 61850-9-2LE
AFD
REM615 Conf D
51P/50P
50BF
49M
51LR/66
27/27PS
59
AFD
REM615 Conf D
51P/50P
50BF
49M
51LR/66
27/27PS
59
AFD
Va, Vb, Vc
3I
3I
3I
Va, Vb, Vc
IEC 61850-9-2LE
M
250HP
M
500HP
—

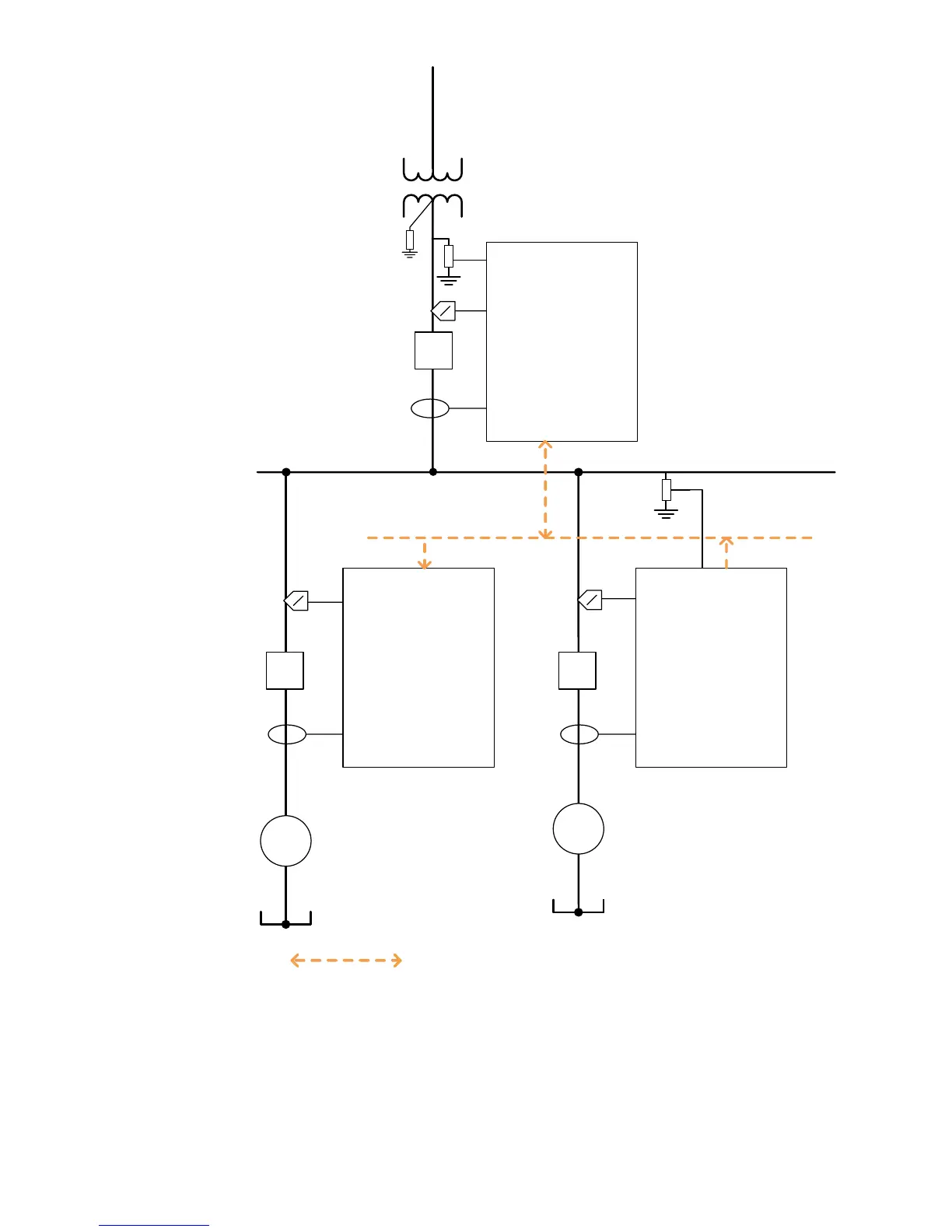

Figure 6. Motor protec-
tion and control of con-
tactor and circuit breaker
controlled motors using
standard configuration D





used for the measurements. To prevent possible

collapse, the simultaneous starting of several



temperature supervision.
The standard configuration D has been pre-


configuration is not restricted for that purpose
only.

ABB REM615 ANSI 5.0 FP1 Specifications

General

Standard	ANSI
Version	5.0 FP1
Rated Frequency	50/60 Hz
Housing	Plastic
Type	Feeder protection relay
Communication Protocols	Modbus, IEC 61850, DNP3
Mounting	Flush mounting
Operating Temperature Range	-40 to +70 °C
Protection Functions	Overcurrent, Earth fault, Thermal overload
Protection Degree	IP54
Input Voltage	24-250 V DC / 48-265 V AC
