ABB RER620 - Page 25

1MAC303209-MB C Section 4
Mounting
620 series 17
Installation Manual

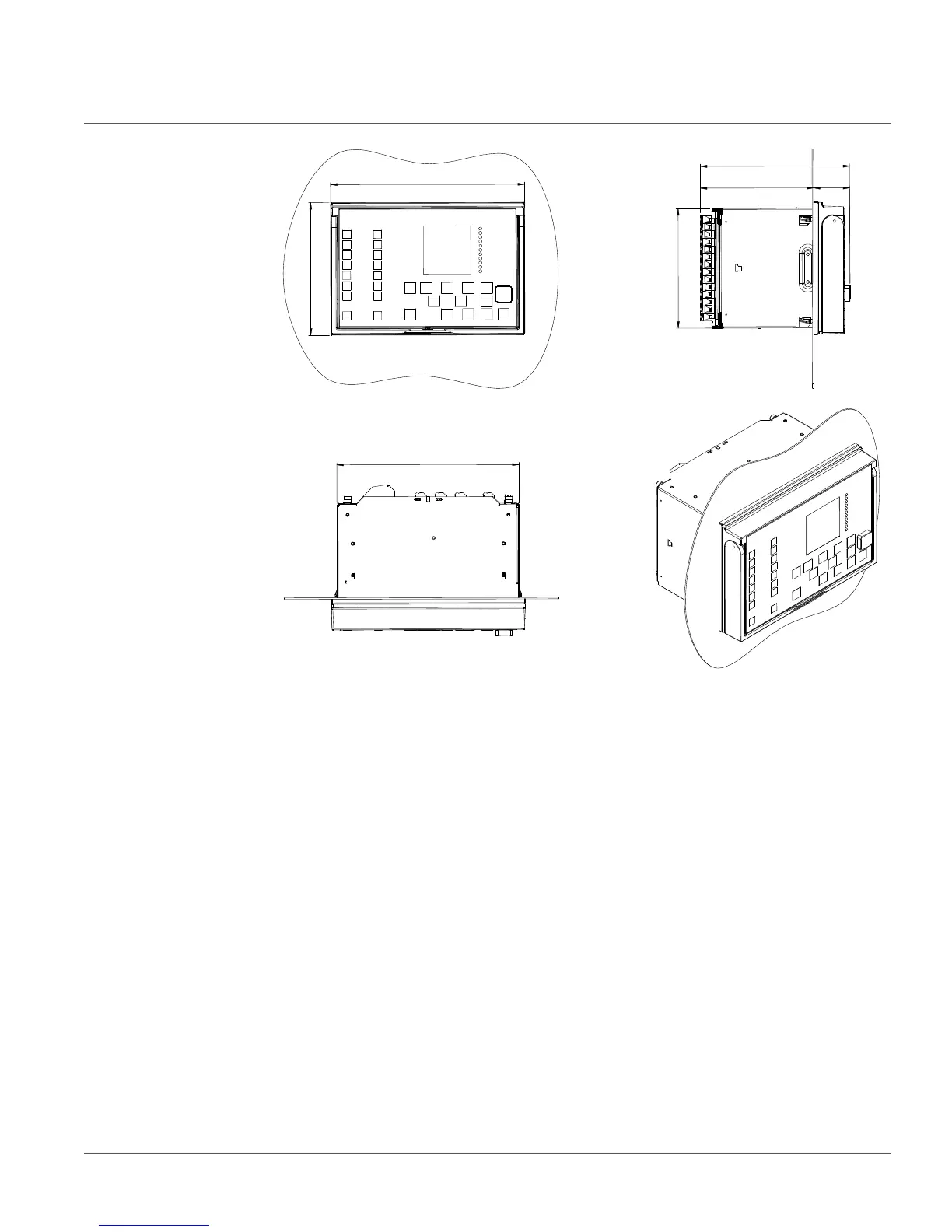

Figure 7: Flush mounted case and plug-in unit
A 9.69 inches (246 mm)
B 6.97 inches (177 mm)
C 10.32 inches (262.2 mm)
D 6.30 inches (160 mm)
E 7.91 inches (201 mm)
F 6.02 inches (153 mm)
G 1.89 inches (48 mm)
F G
E
D
B
C
A
