&DOLEUDWLRQ
3.2.5. Calibration sensor mounting positions, CalPend
3HAC 16578-1 Revision: E58
© Copyright 2003-2007 ABB. All rights reserved.
Axis 3, 4, 5 and 6 IRB 4400, IRB 4450S
xx0200000266
,5%

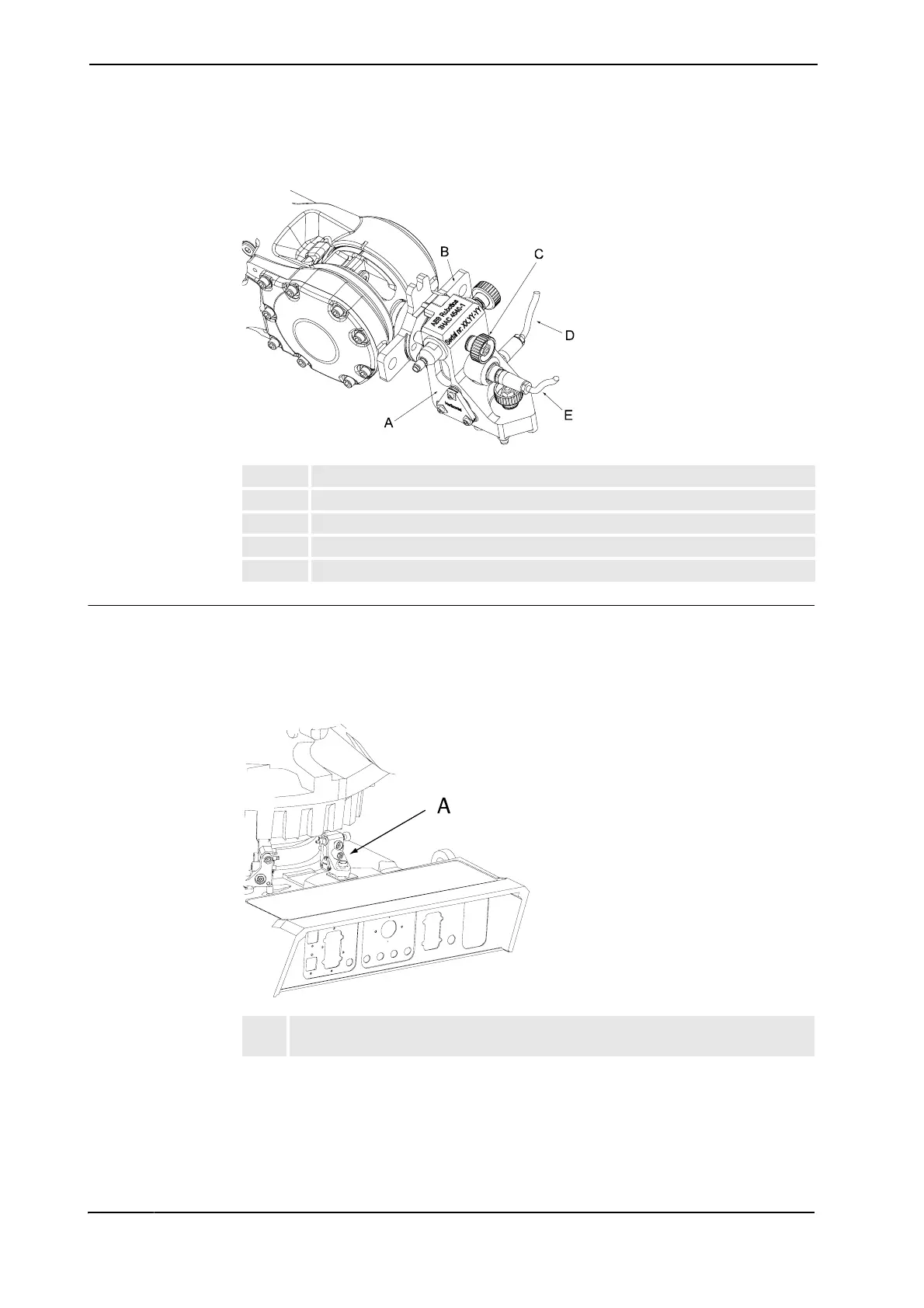

The illustrations below show the mounting positions and directions for both the reference
sensor and axis sensors on the robot
Reference position IRB 6600/6650, IRB 7600, IRB 660
xx0200000183
A Calibration sensor
B Turning disk adapter
C Locking screw
D Sensor cable, sensor B
E Sensor cable, sensor A
A Calibration pendulum in reference sensor position. NOTE! The pendulum is only
fitted in one position at a time!
&RQWLQXHG
&RQWLQXHVRQQH[WSDJH
