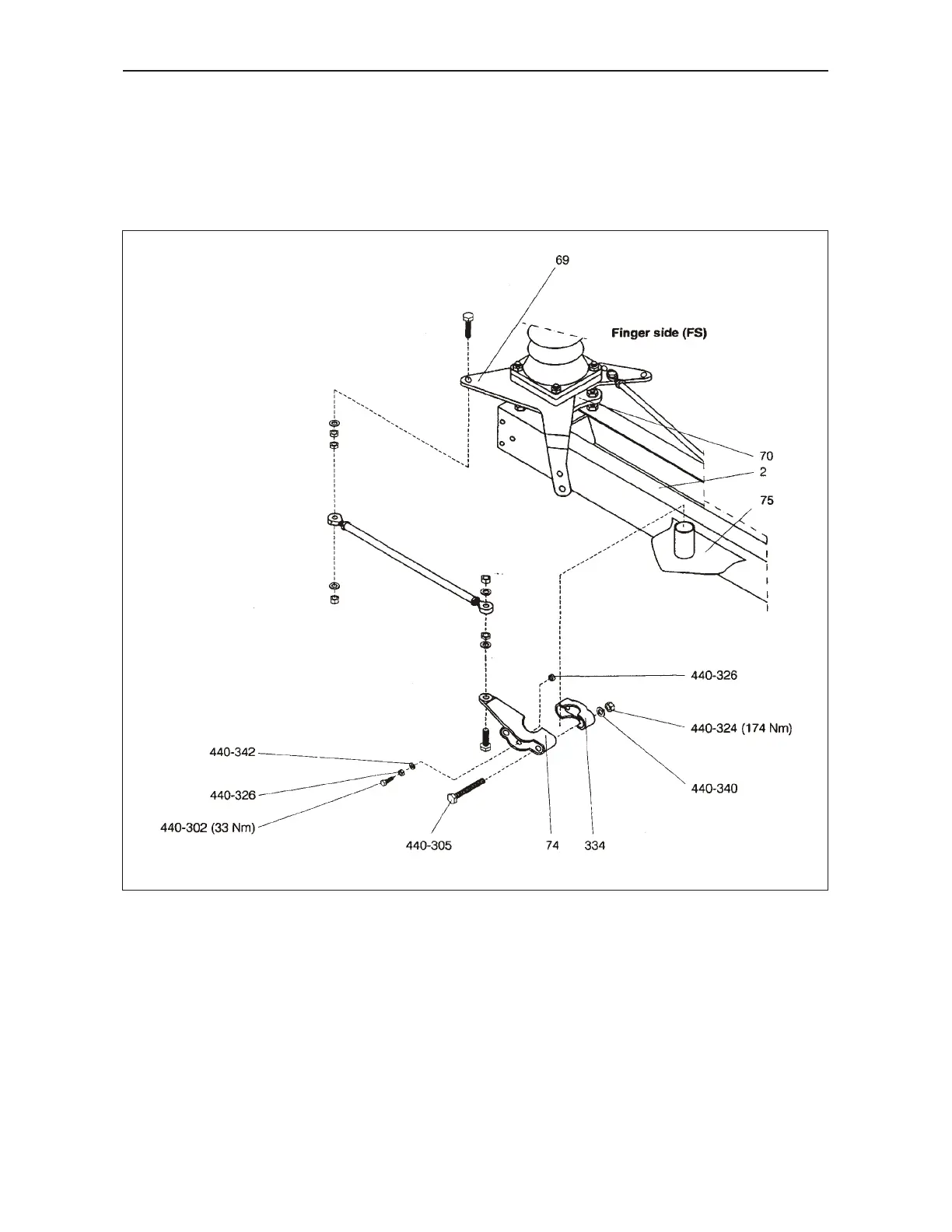

Figure 20 : Mounting of operating mechanism for disconnector, direct mounting : Mounting of operating
lever (74) if operating mechanism for disconnector at opposite opening side.
25/113
1HDB 050016-YN-A
