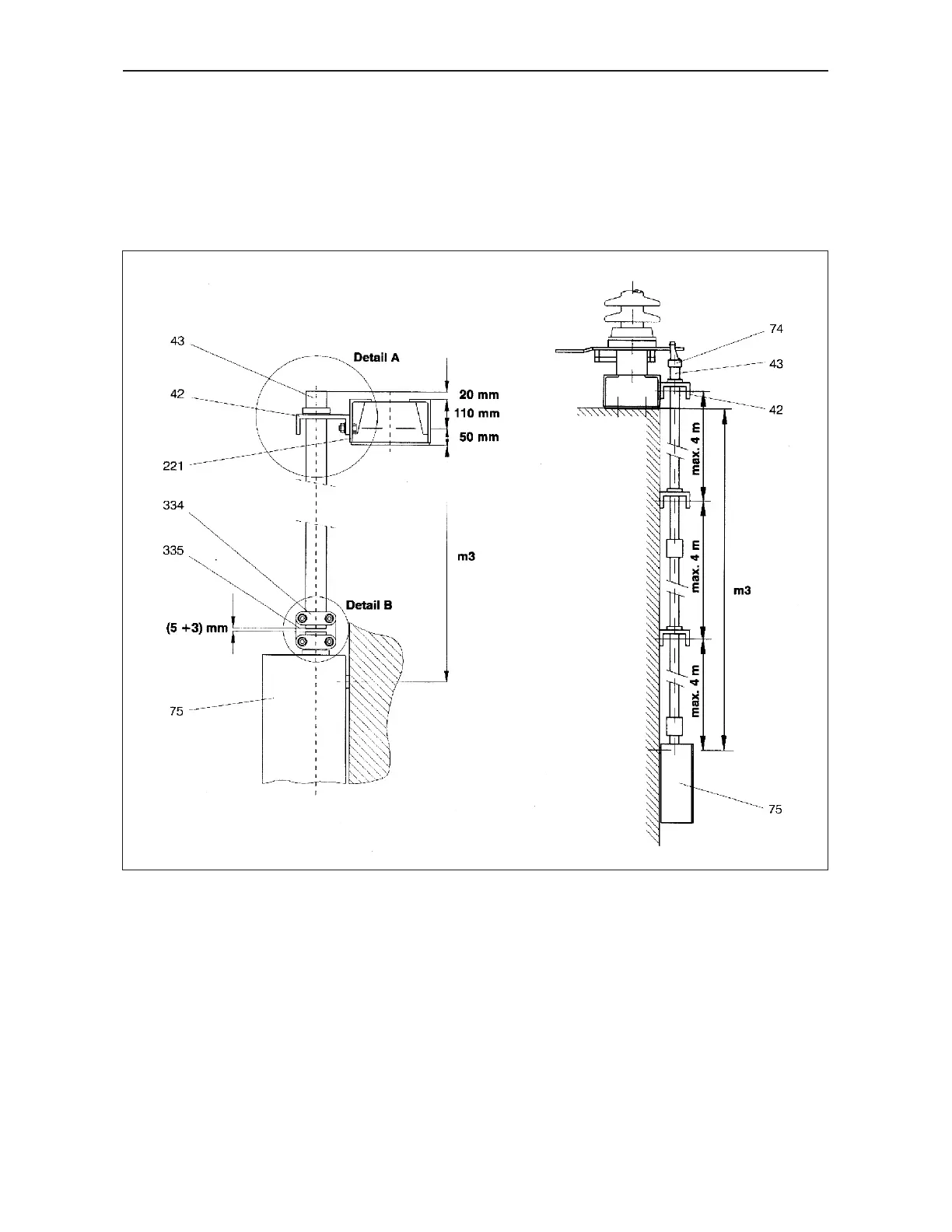

Figure 23 : Mounting of operating mechanism for disconnector, separate mounting if measurement
m3 = 6 ... 12 m : Mounting dimensions (Details A And Detail B : Figure 24)
29/113
1HDB 050016-YN-A
