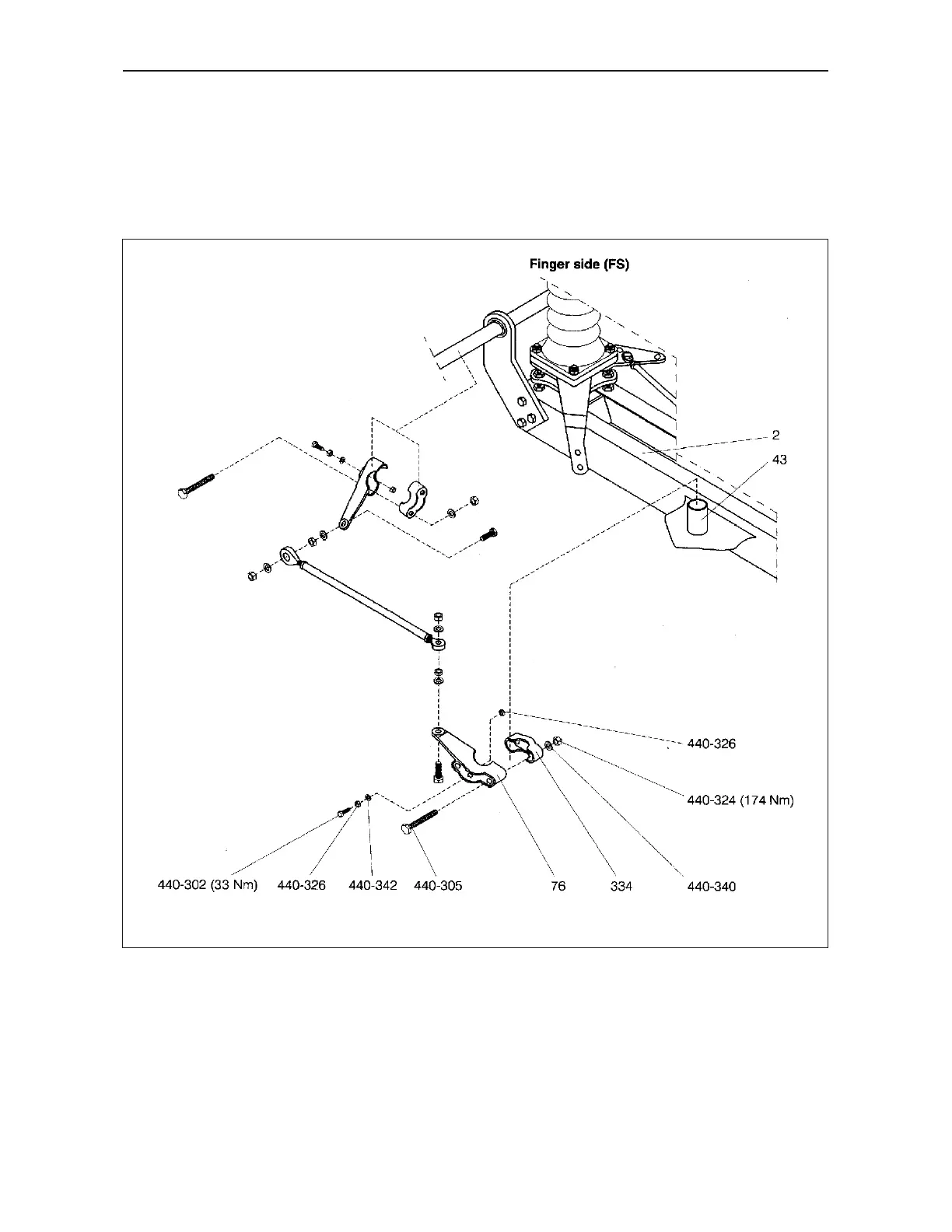

Figure 44 : Mounting of operating mechanism for earthing switch, direct and separate mounting : Mounting
of operating lever (76) if operating mechanism for earthing switch on finger side.
53/113
1HDB 050016-YN-A
