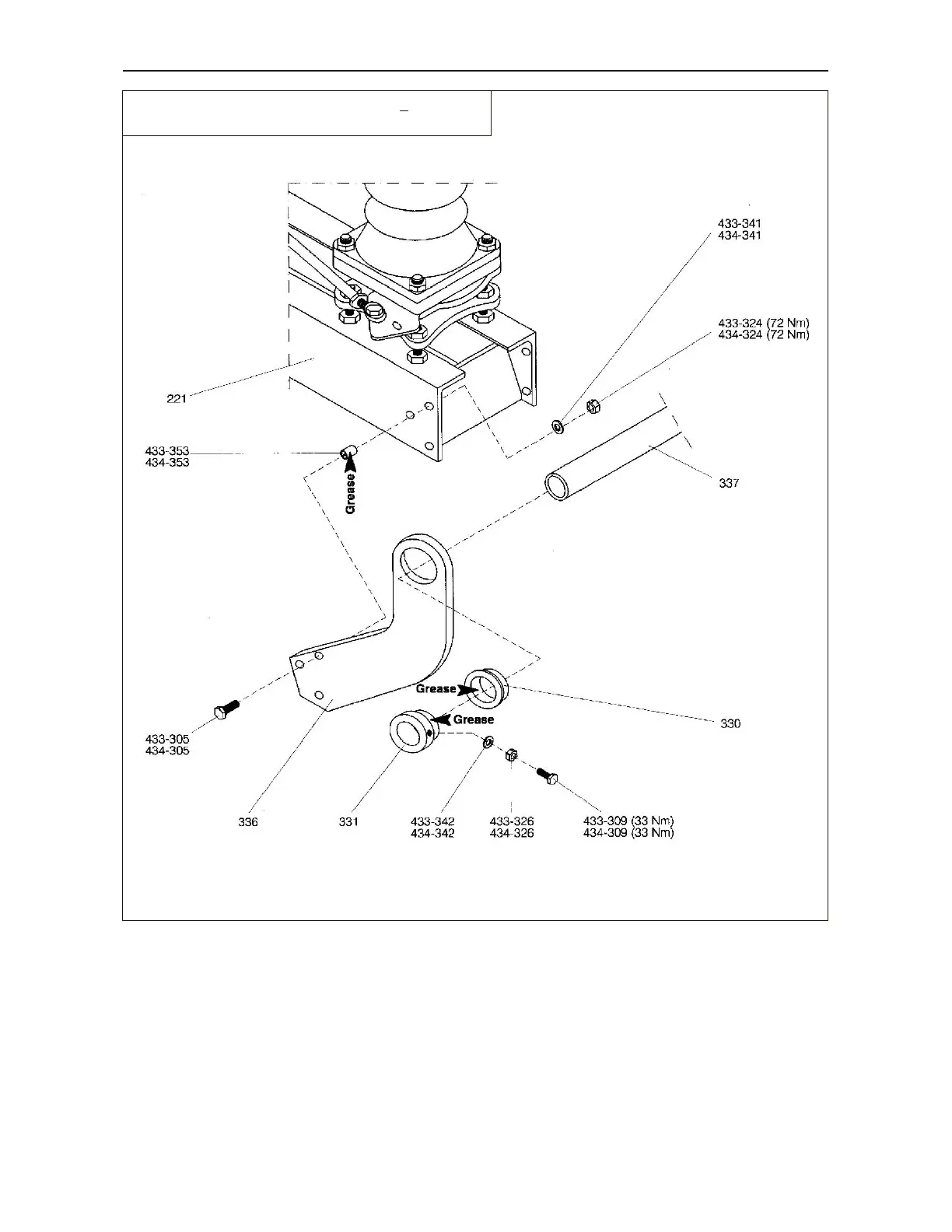

Figure 45 : Mounting of earthing switch, earthing-switch poles in parallel :
Mounting of earthing-switch link (336)
Item numbers 433-... : Poles Distance P < 2 500 mm
Item numbers 434-... : Pole distance P > 2 500 mm
56/113
1HDB 050016-YN-A
