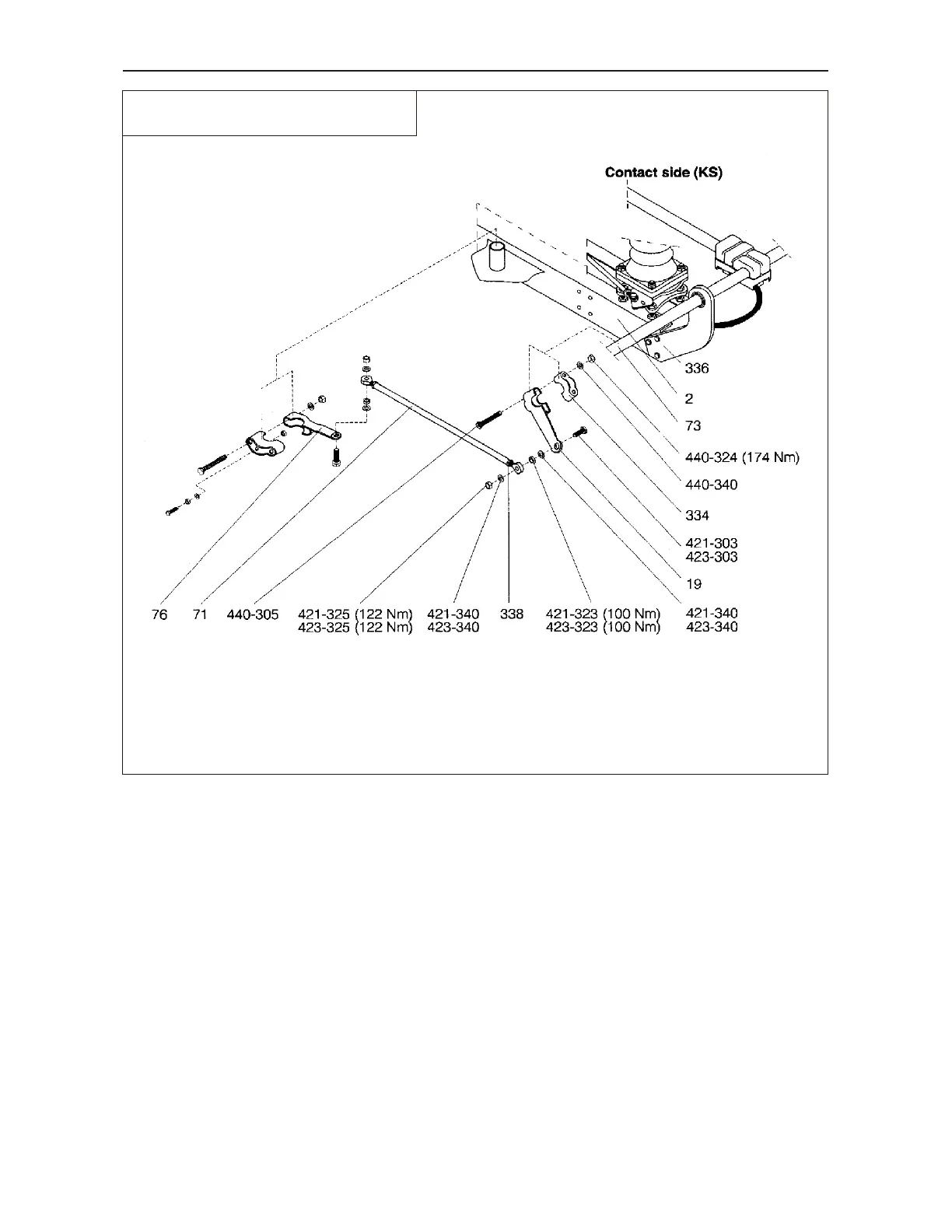

Figure 58 : Mounting of earthing switch, earthing-switch poles in series : Mounting of earthing-switch lever
(19) and operating rod (71) if operating mechanism for earthing switch on contact side
Item numbers 421-... : Direct mounting
Item numbers 423-... : Separate mounting
70/113
1HDB 050016-YN-A
