ABB Tmax T7 User Manual

B0431
Emax X1-Tmax T7-Tmax T8
14/66
Doc. no.
Model
Apparatus
Scale
Page No
1SDH000587R0002
2.4.9. Trip curves
The trip curves provided are merely for guidance and only show a sub-group of the possible selections.

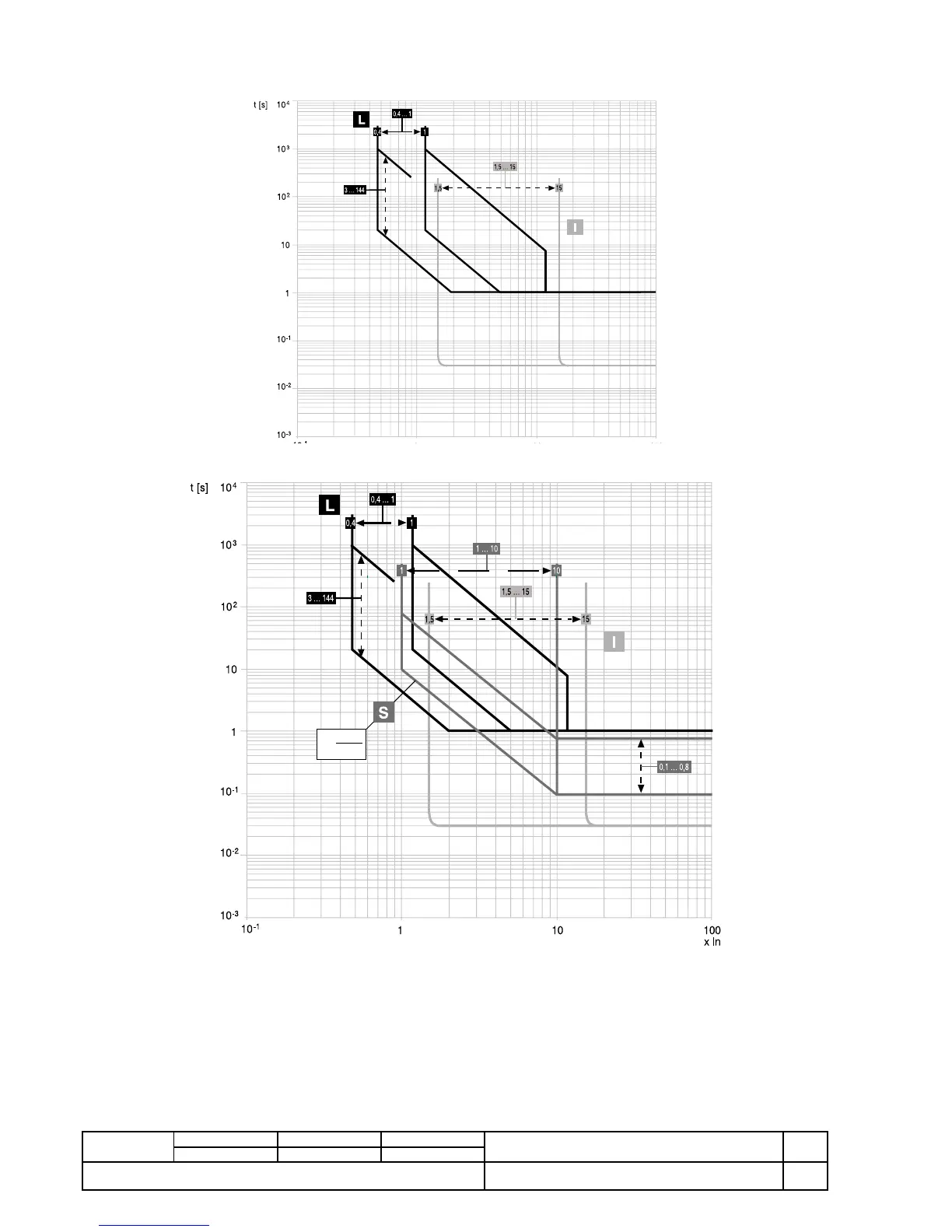

2.4.9.1. Trip curves for functions L-I
2.4.9.2. Trip curves for functions L-S(t =k/I
2
)-I
t =
k
I
2
