Page 8 2103956 Rev. AA

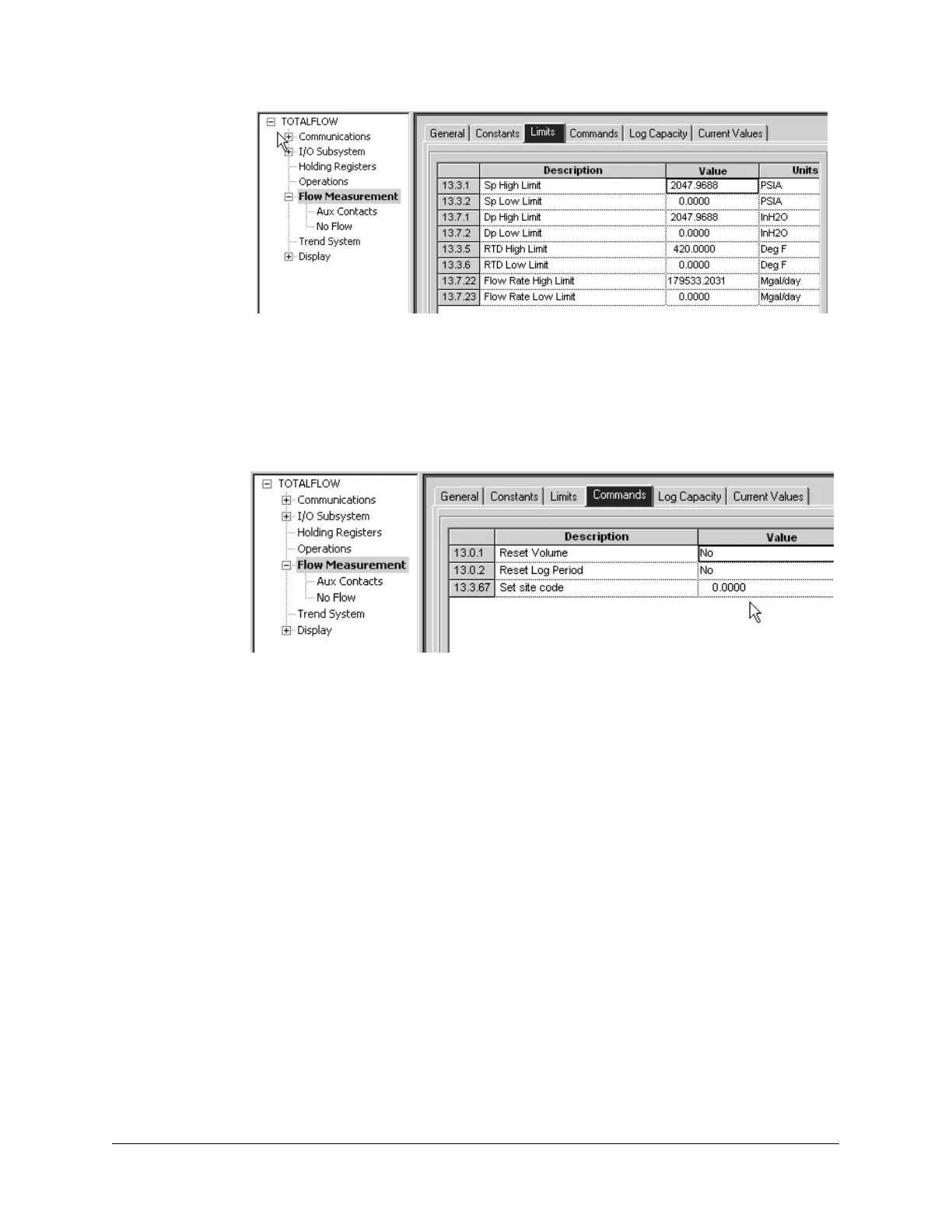

Figure 4 Limits Tab
3.4 Commands Tab
The Commands tab (see Figure 5) shows the Reset Volume, Reset Log Period and
Site Code entries.
Figure 5 Commands Tab
3.4.1 Reset Volume
When set, the Reset Volume field accomplishes four tasks:
• Sets accumulated volume to 0.0
• Starts new log period
• Starts new day period
• Logs reset volume event
3.4.2 Reset Log Period
When set, the Reset Log Period is tasked with accomplishing three things:
• Starts new log period
• Starts new day period
• Logs reset log event
