Operation Manual / TPL76-C
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2020 . All rights reserved. HZTL2485_EN Rev.G March 2020
Fitting turbine diffuser
u Coat all screw threads on and in the gas casings with high-temperat-
ure grease.

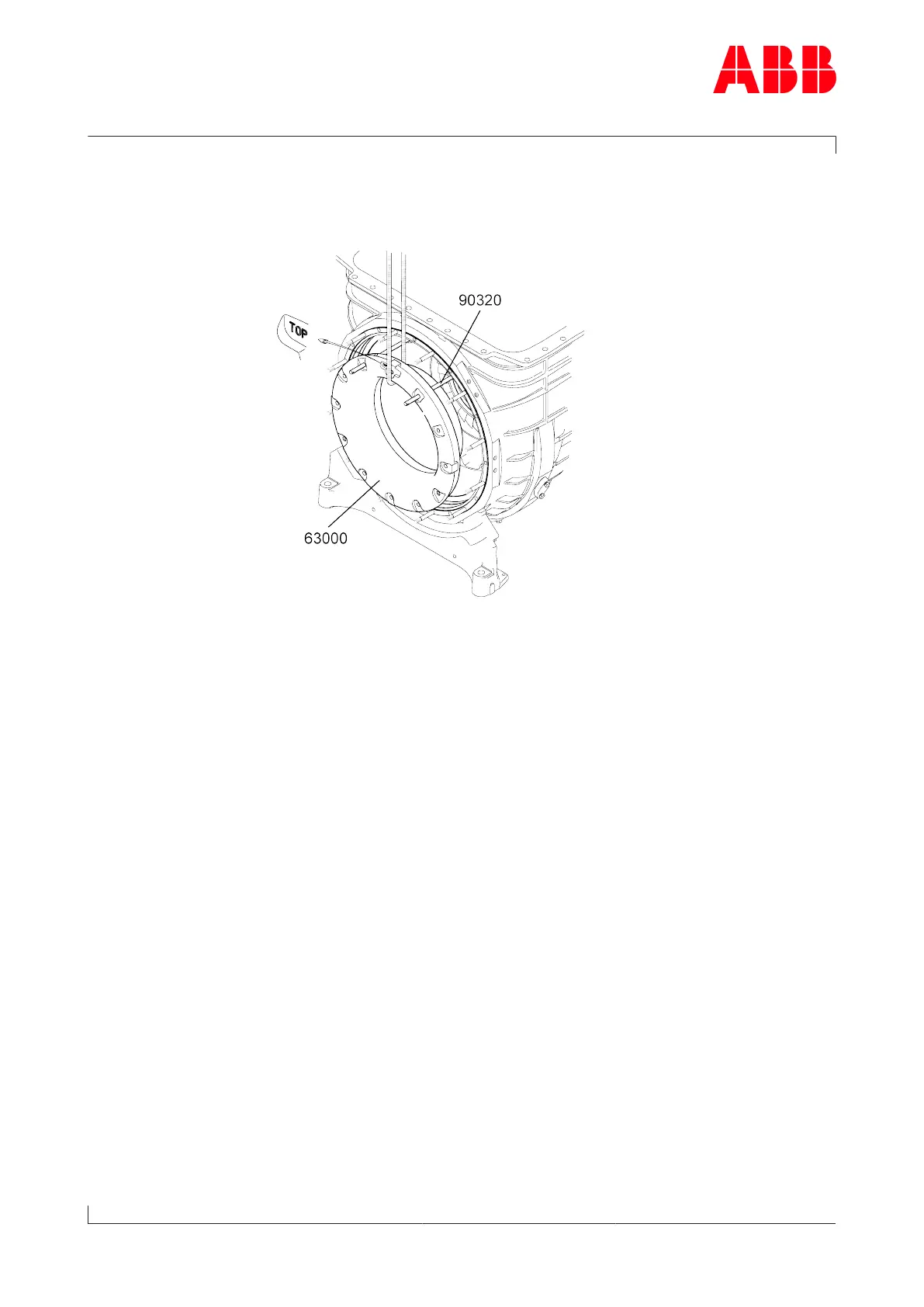

u Fasten turbine diffuser (63000) to lifting gear.
u Align marking "TOP" with the position of the gas outlet flange and
pay attention to where the positioning pin is in the gas outlet casing.
u Fit turbine diffuser (63000) to guide studs (90320).
u Put assembly plate (90020) over strain bolts (61036) and guide studs
(90320).
u Remove lifting gear and push in turbine diffuser.
u Using three screws (61056), alternately and uniformly screw in turbine
diffuser as far as it will go.
u Insert torque spanner extension through hole in assembly plate and
tighten screws (61056) one after another. (See illustration in section
Removing turbine diffuser)
