Operation Manual / TPL76-C
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2020 . All rights reserved. HZTL2485_EN Rev.G March 2020

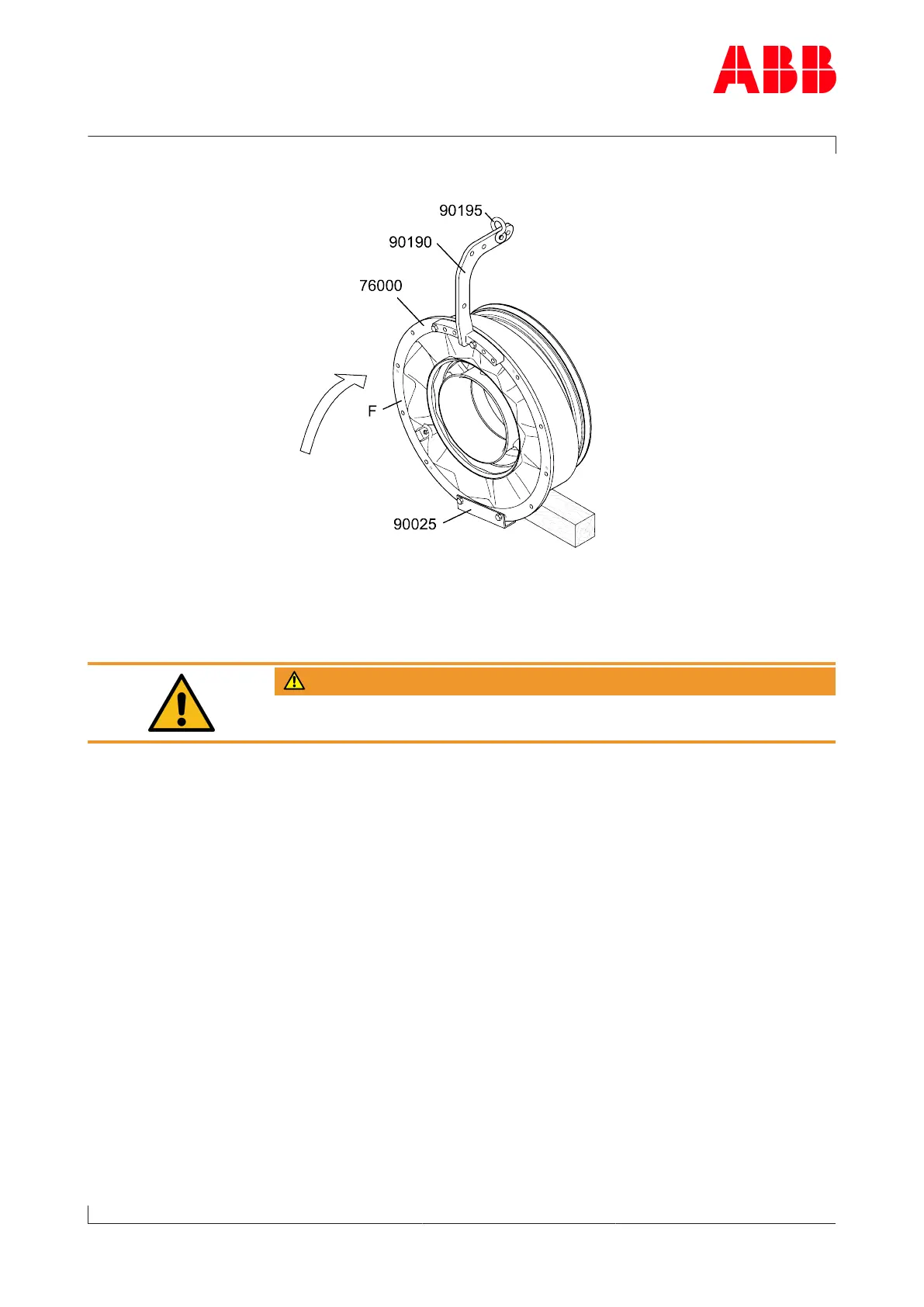

Turning / transporting internal part of compressor casing
u Fasten lifting device (90190/90195) to front side of flange (F).
u Carefully turn internal part of compressor casing (76000) complete
with wall insert and diffuser about support angle (90025) and lift up
vertically.
WARNING
Ensure that the shim does not slip.
Page 103 / 133
