8 Disassembly and assembly / 8.8 Dismantling and fitting nozzle ring
at turbine end
© Copyright 2020 . All rights reserved. HZTL2485_EN Rev.G March 2020

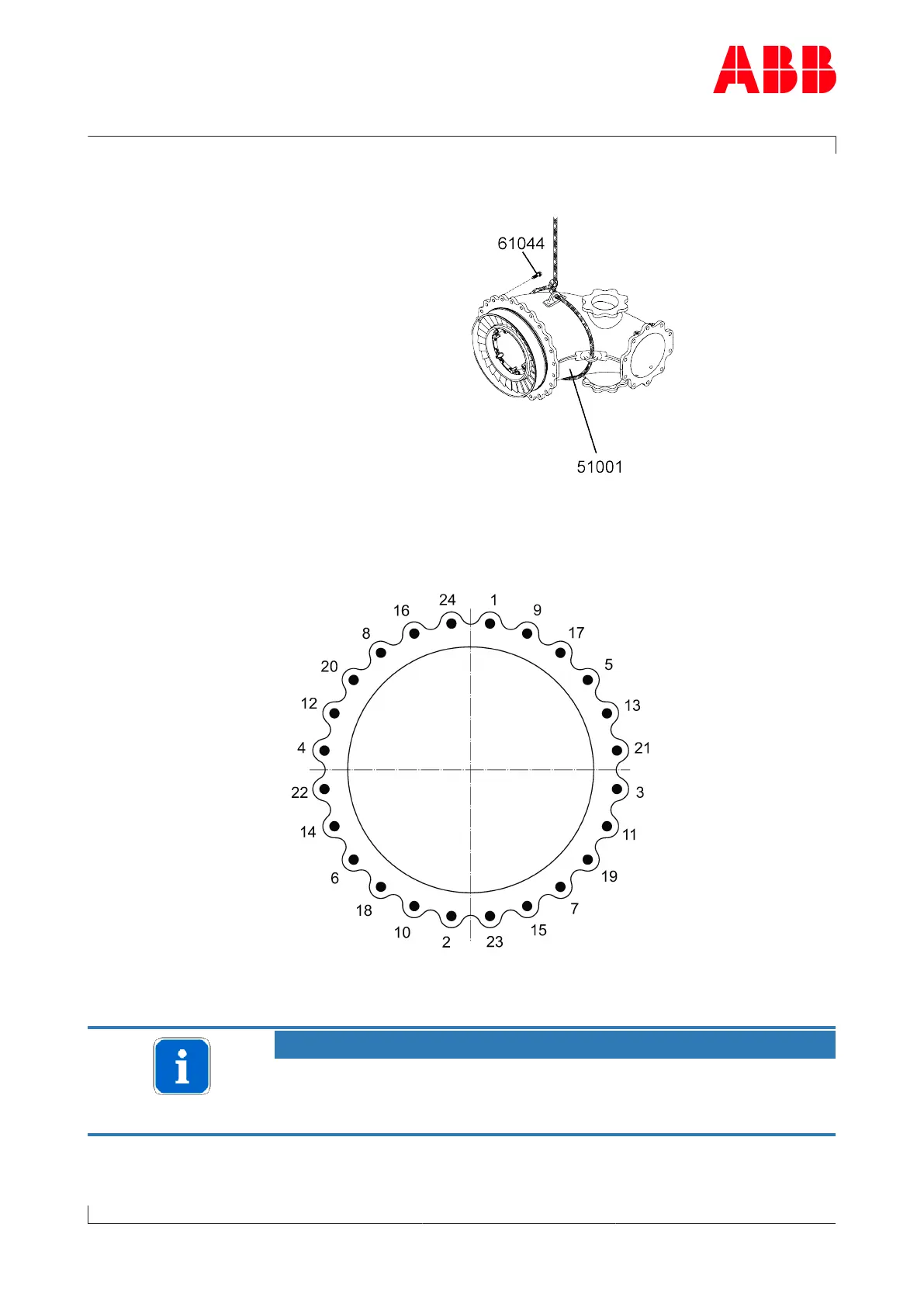

Tightening flange connection
u Fit screws (61044).
u Tighten screws (61044) in accordance with following procedure and in
following order:
Flange connection
u Tighten screws crosswise
NOTICE
Screw tightening sequence
The screw positioning numbers must be marked on the component.
This enables simple and efficient tightening.
