Operation Manual / TPL76-C
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2020 . All rights reserved. HZTL2485_EN Rev.G March 2020

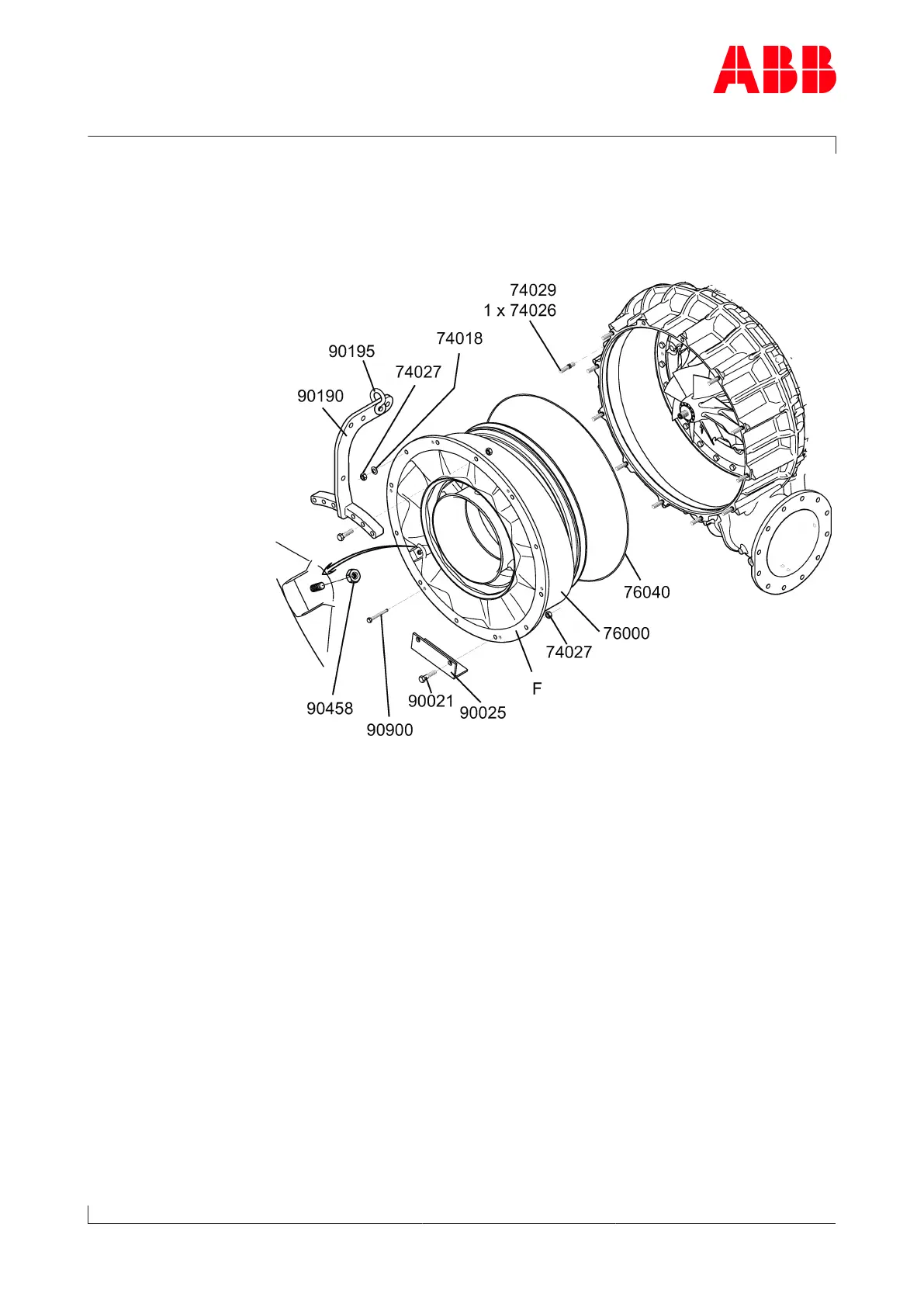

Removing the compressor casing internal part
u Remove two studs (74029 / 74026) at the point where the lifting
device (90190) will be fitted later.
u Using press-off screws (90900), push apart the compressor casing in-
ternal part (76000) until the lifting device (90190/90195) can be at-
tached.
u Slightly lift and then withdraw the compressor casing internal part in-
cluding the wall insert and diffuser.
u Attach the support angle (90025) using screws (90021) and nuts
(74027).
u Put down the compressor casing internal part including the wall in-
sert and diffuser on the support angle and an underlay.
u Remove the O-ring (76040).
