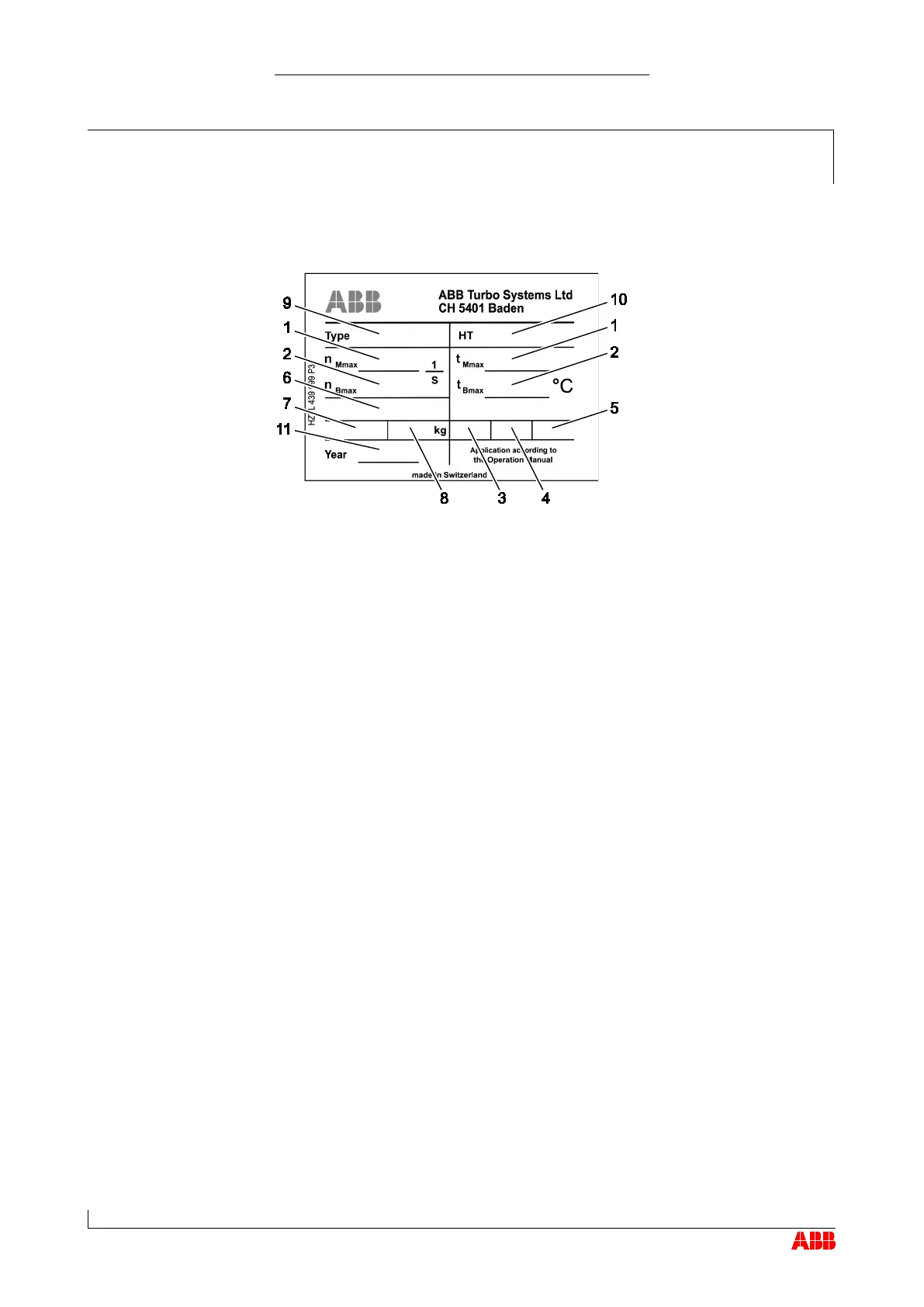

Turbocharger rating plate
1.7
1 Turbocharger operating limits at engine overload (110%).
Only when operating in the test rig unless otherwise agreed with the
enginebuilder.
2 Turbocharger operating limits during operation
3 Inspection interval for plain bearings in 1000 h
4 Replacement interval for compressor in 1000 h
5 Replacement interval for turbine in 1000 h
6 Part number for customer
7 Designation of special design
8 Turbocharger weight in kg
9 Turbocharger type
10 Serial number
11 Year of turbocharger construction
1.7
Operating limits
Recommended inspection
and replacement intervals
for turbocharger
components
