35
A
M10
E
C
B
G
D
F
H
TJC 4(5), TJCH 4(5) TJC 6 TJC 7.1
A [mm] 220 282 324
B [mm] 338 352 393
C [mm] 148 178 250
D [mm] 270 275 300
E [mm] 125 150 225
F [mm] 11 11 30
G [mm] 130 143 150
H [mm] 11 14 14
—
TJC(H) 4(5,6,7)
—
TJC

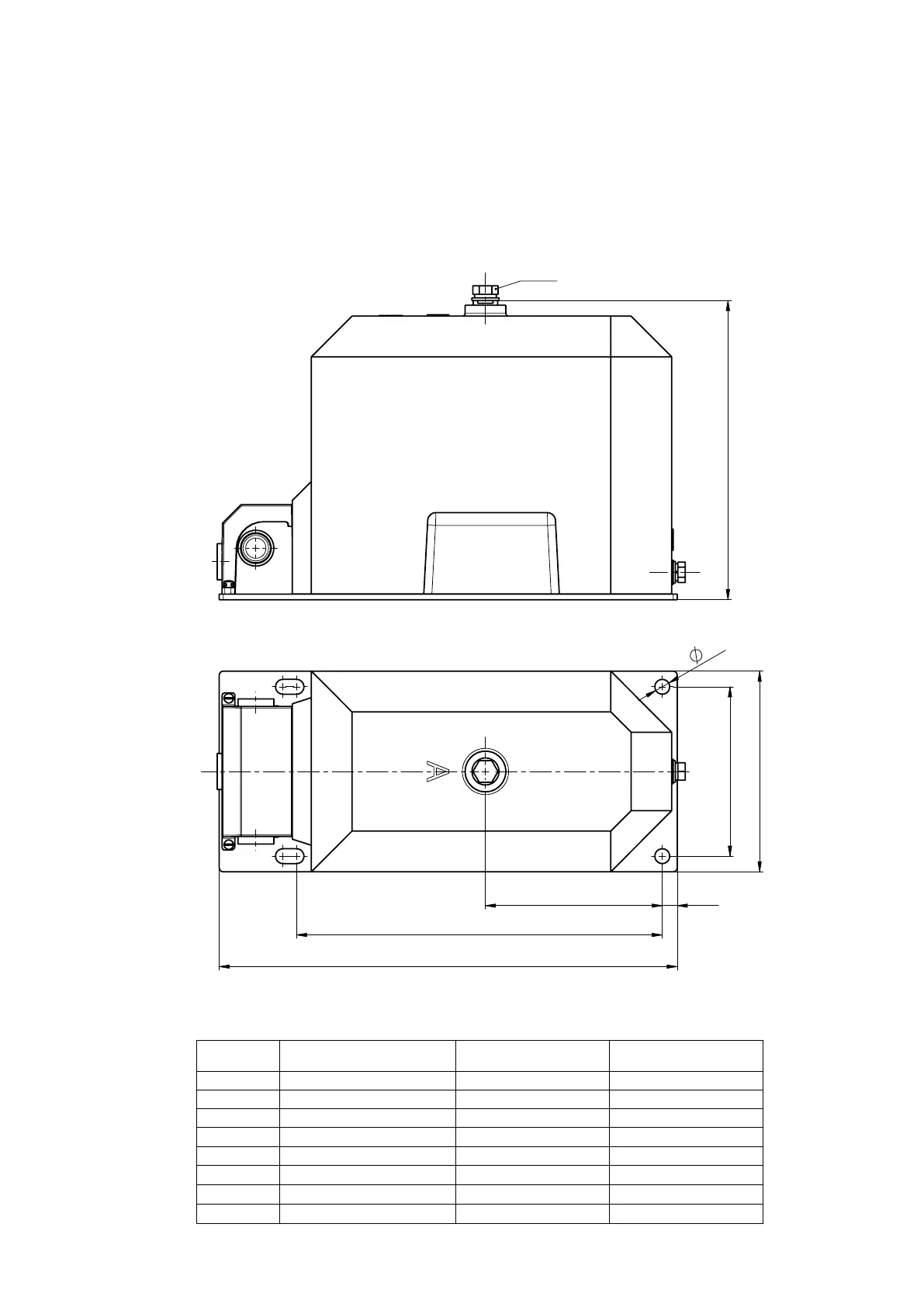

Dimensional Drawing
