CURRENT AND VOLTAGE INSTRUMENT TRANSFORMERS
INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE
300
20
28
38
26
M8
Pg16
14
314
704
324
55
M10
225 225
4x
14
300
30
393
250
150
107

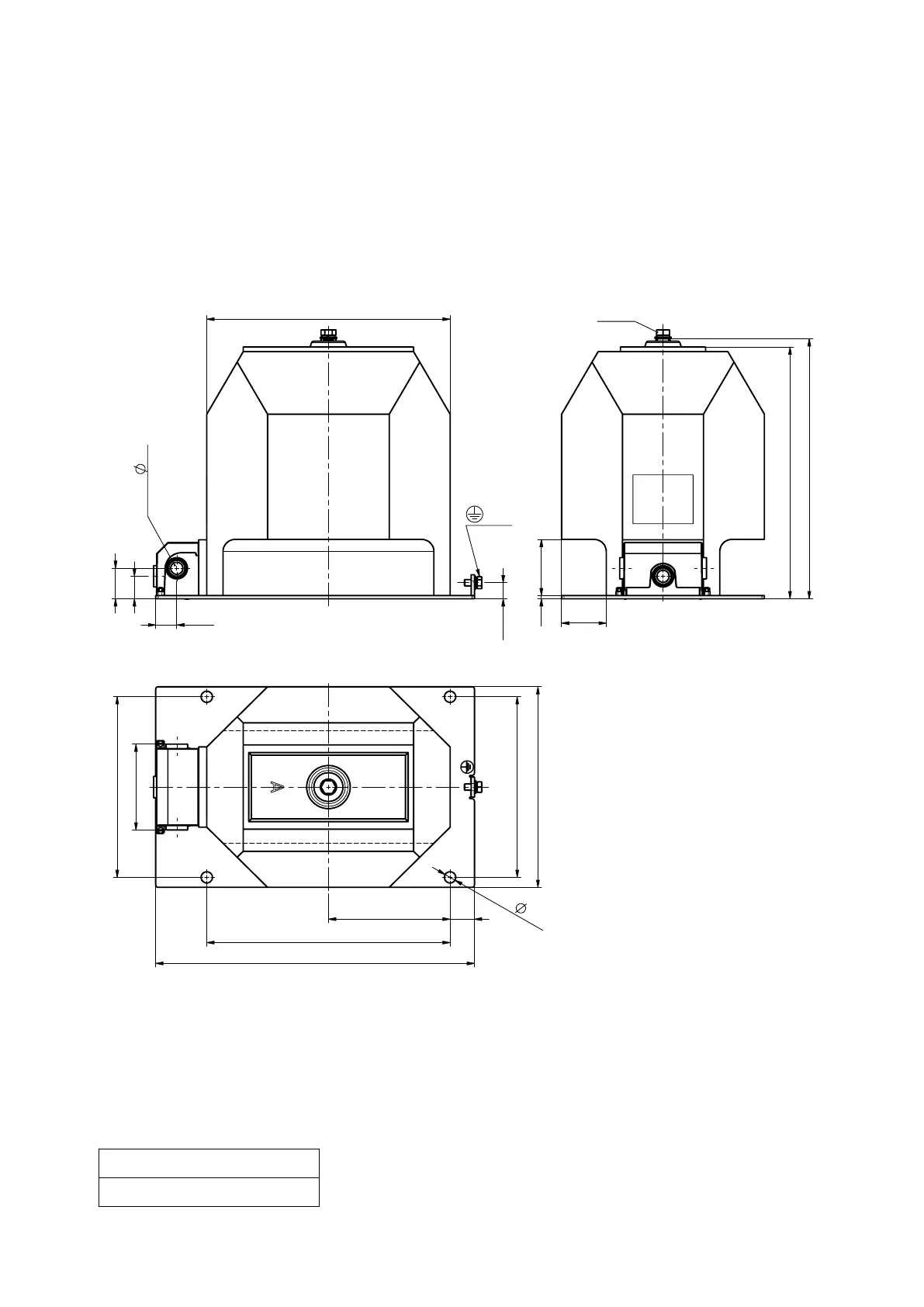

Drawing n.
44204010
TJC 7.1
WEIGHT: 48kg
CREEPAGE DISTANCE: 398mm

Weight:48 kg
Creepage distance: 398 mm
—
TJC 7.1
