CURRENT AND VOLTAGE INSTRUMENT TRANSFORMERS
INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE
A
M10
E
C
G
I
D
F
B
J
H
TDC 4(5) TDC 6
A [mm] 220 280
B [mm] 338 352
C [mm] 148 178
D [mm] 270 275
E [mm] 125 150
F [mm] 11 11
G [mm] 110 130
H [mm] 100 165
I [mm] 88 60
J [mm] 11 14
—
TDC 4(5,6)
—
TDC

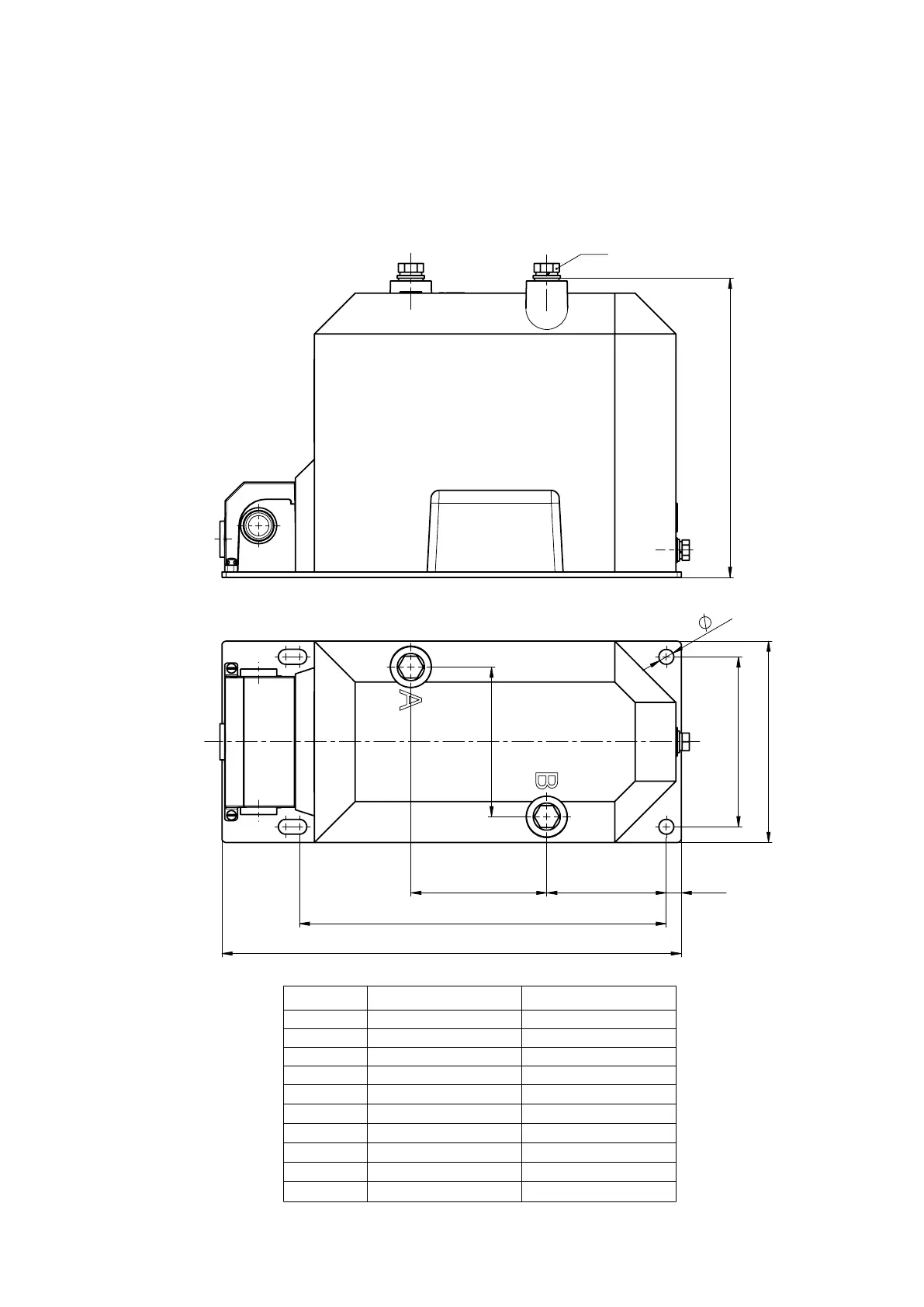

Dimensional Drawing
