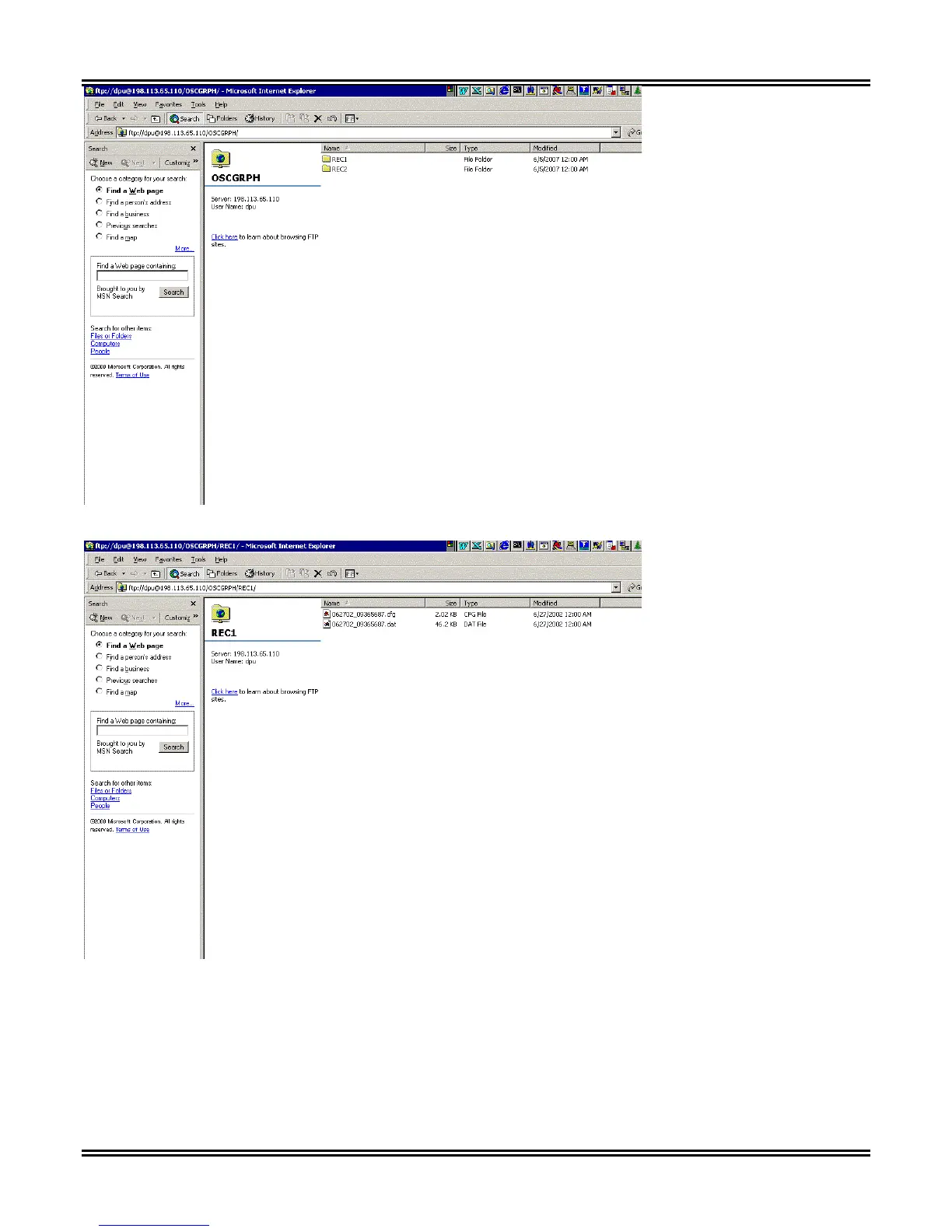

FIGURE 5-63c: OSCILLOGRAPHIC COMTRADE FILE SUBDIRECTORIES
FIGURE 5-63d: COMTRADE FILES AVAILABLE USING A BROWSER UTILITY
Fault Record Retrieval
Fault records can be extracted from the DPU2000R by using a standard web browser from Netscape or Internet
Explorer Version 5.0 from Microsoft, from an initiated FTP session. The format is a standard text file listing the
time and dates for of each fault recorded in the relay. If one selects the subdirectory for FLTREC, (Fault
Records), additional files will be available to extract and view. FIGURE 5-63e illustrates the file structure for
