ABB TZID-C - Parameter Setting Example

Brief operating instructions
e Brief operating instructions 42/18-64-4 EN

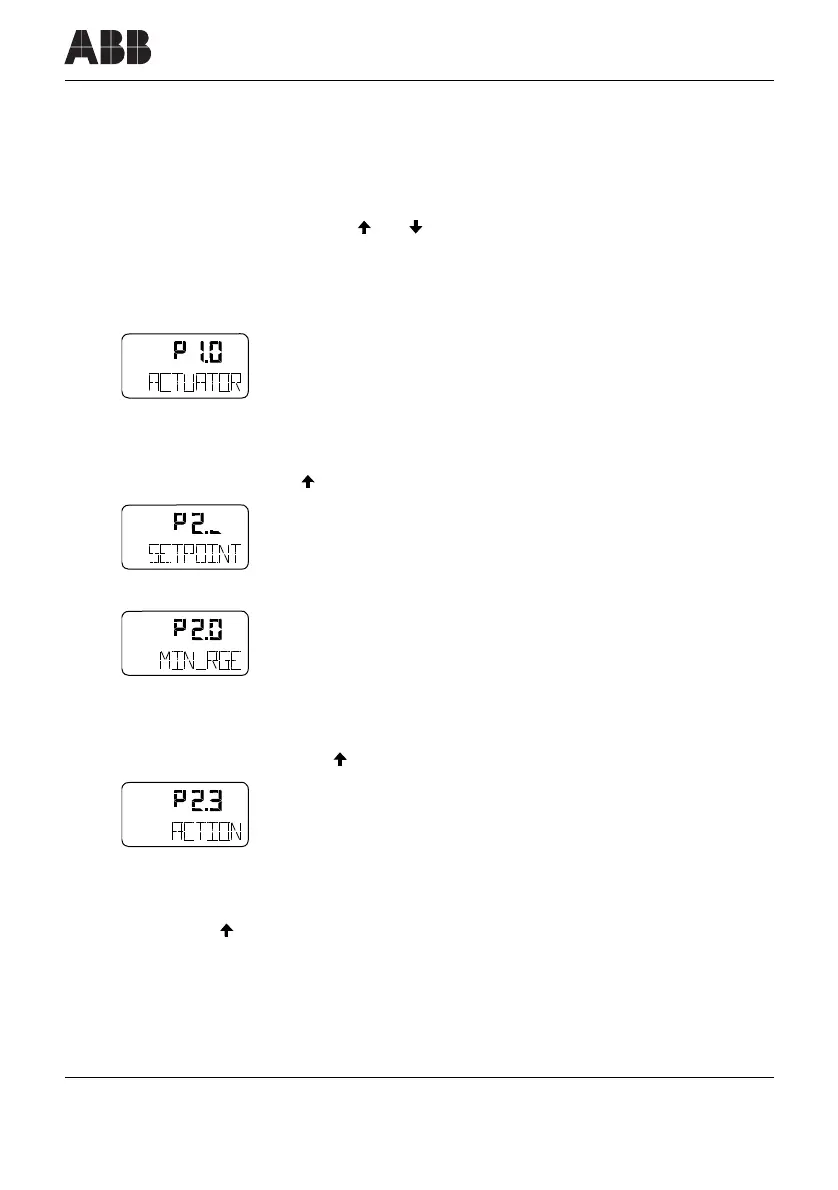

Parameter setting example:
"Changing valve action from direct to reverse"
Starting situation: the TZID-C is operating on the operating level in an arbitrary mode.
1. Change over to the configuration level:
- Simultaneously press and hold and .
- In addition, briefly press
ENTER .
- Wait until countdown from 3 to 0 has run down.
-Release
ENTER .
- is displayed.
2. Change over to parameter group 2._ (See “Parameter group 2: Setpoint” on page 57):
- Simultaneously press and hold
MODE and ENTER .
- In addition briefly press once.
- is displayed.
-Release
MODE and ENTER .
- is displayed.
3. Select parameter 2.3 "Valve action:
- Press and hold
MODE .
- In addition, 3 x briefly press .
- is displayed.
-Release
MODE .
4. Change parameter setting:
- Briefly press to select "REVERSE".
conf
mA
%
C
°
conf
mA
%
C
°
conf
mA
%
C
°
conf
mA
%
C
°
