34
3.6 Gas vent ducts
3.6.1 Installation of the gas vent ducts
—

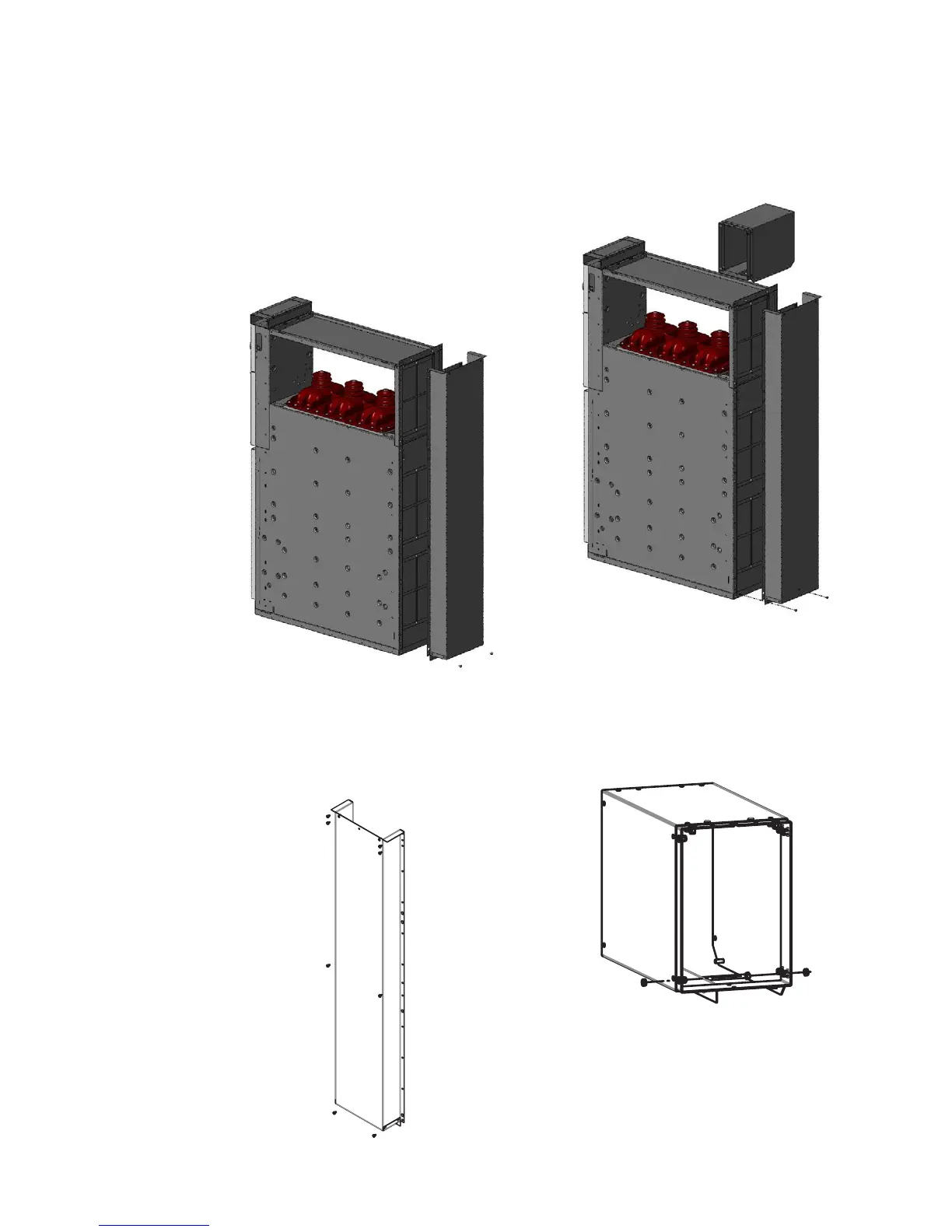

Figure 73. Installation of the vertical gas vent duct
Figure 75. Additional screws for the bottom plate
Figure 74. Screws for the vertical duct and bottom plate
Figure 76. Screws and nuts for the horizontal duct
