ABB UNO-DM-2.0-TL-PLUS-Q User Manual

- 32 -
000984AG
3 - Characteristics
Tightening torques
To maintain the IP65 protection of the system and for optimal installation,
the following tightening torques must be used:
AC output connector cable gland
10
(ring nut fastening)
4...5 Nm
Screws for securing AC output connector cables gland
0.8...1 Nm
Service cable gland
20
M25 (ring nut fastening)
5.0 Nm
Service cable gland
20
M25 (lock nut fastening)
7.5 Nm
Front cover fastening screws
05
2.5 Nm
Screw for external ground connection
19
2.5 Nm
Overall dimensions

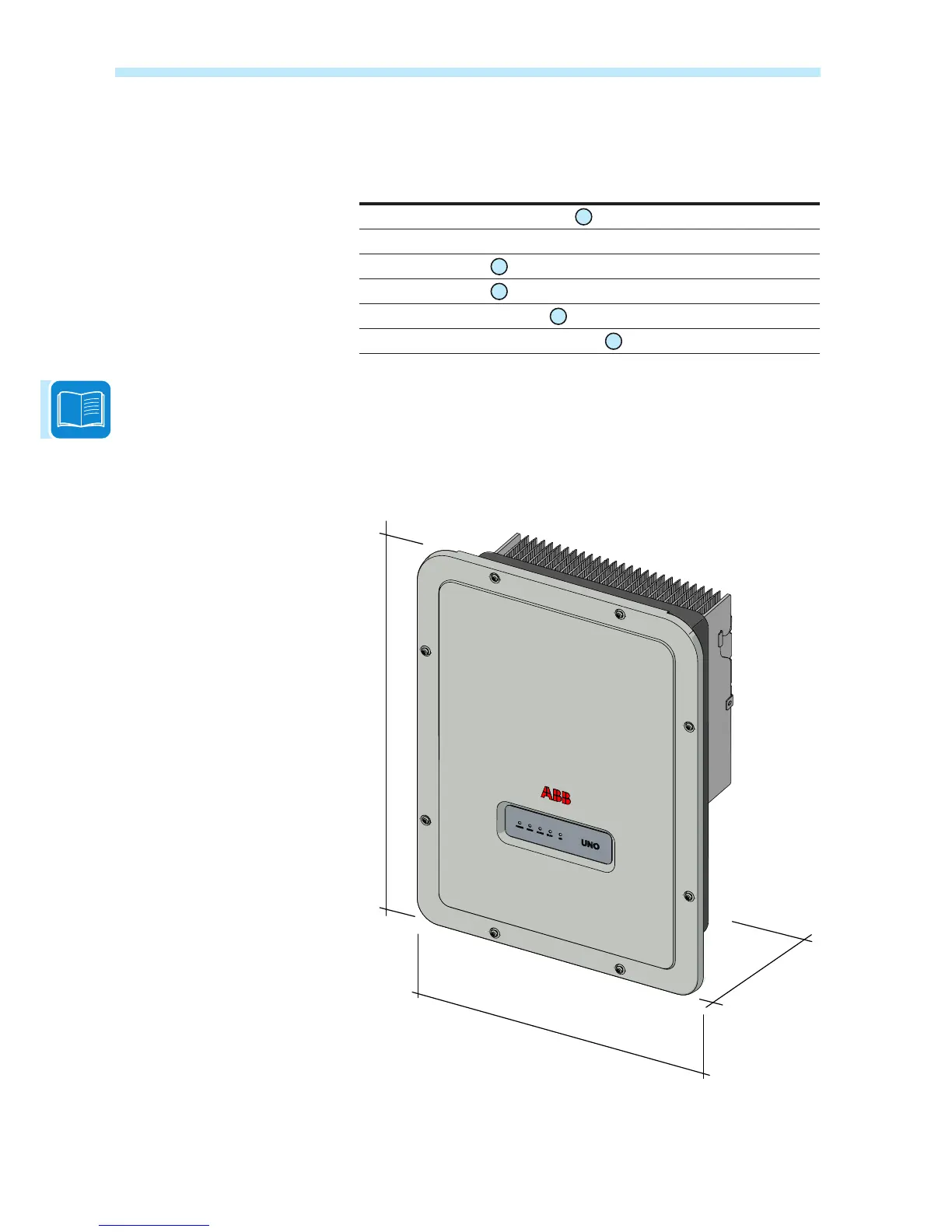

The overall dimensions are expressed in millimetres and inches and in-
clude the wall installation bracket.
418mm - 16.45”
175mm
6.89”
553mm - 21.77”

ABB UNO-DM-2.0-TL-PLUS-Q Specifications

General

Type	String Inverter
Number of MPPT	2
Cooling	Natural convection
Protection Class	IP65
Nominal AC Power	2000 W
Nominal AC Voltage	230 V
Topology	Transformerless
DC Connection	MC4
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25 °C to +60 °C
Max. AC Power	2200 W
AC Connection	Plug type
