A3.3 Mounting of ttings for motor-drive mechanism cabinet
Fig. A9 shows ttings and other details to be installed after the frame and door have been
painted.
Appendix A
3 Welding and mounting instruction
Crank bracket
Screw M3x12
Nut M3
Washer
Diagram pocket
Screw M4x12
Nut M4
Spring washer
Ordering No. for the ttings above: LL322 005-K.
Ordering No. for the door, painted with primer: LL 322 007-B
Rating plate
Screw M3x5
Cover plate
Gasket
Nut M10
Screw
M10 x 30
Filter
Doorknob
left or right
Hinge
right or left
Screw washer M8x16Gasket mounted on the
edge of the frame
Window glued
to the door
Screw M6x12
Spring washer
Earth connection
right or left
Filter Sealing
plugs
View C – C View B – B View A – A

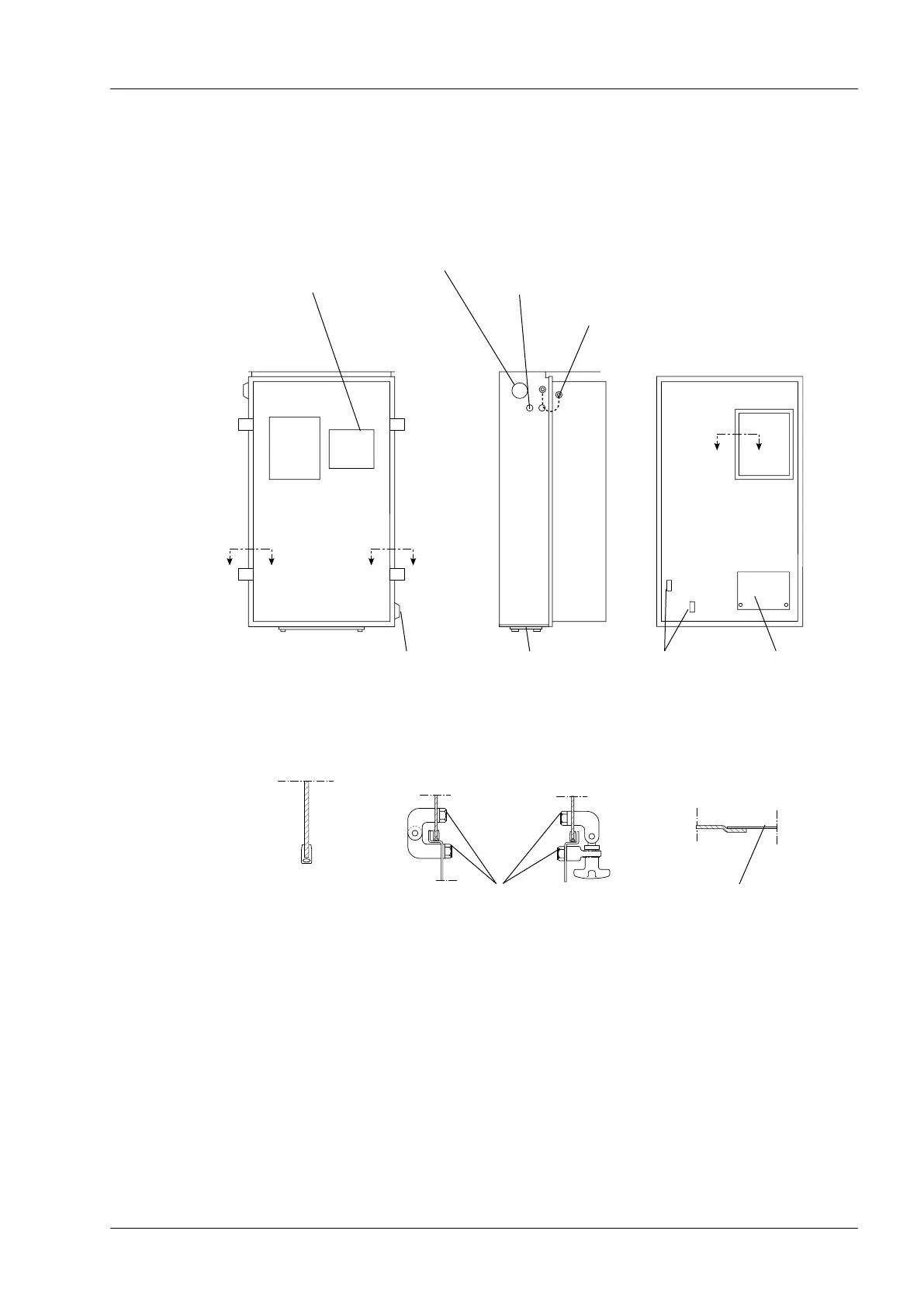

Fig. A9. Cabinet details.
