Strap
Lifting yoke
A4.2 Mounting of the on-load tap-changer
When handling the on-load tap-changer, use lifting yokes (according to the table in section
A1.1) which are mounted as shown in Fig. A13. Strap the on-load tap-changer to the lifting
yoke. When the on-load tap-changer is raised, remove the straps, see Fig. A14, and mount
the on-load tap-changer to the tank as described in section A3.2.1.
Appendix A
4 Welding instruction for inclined assembly

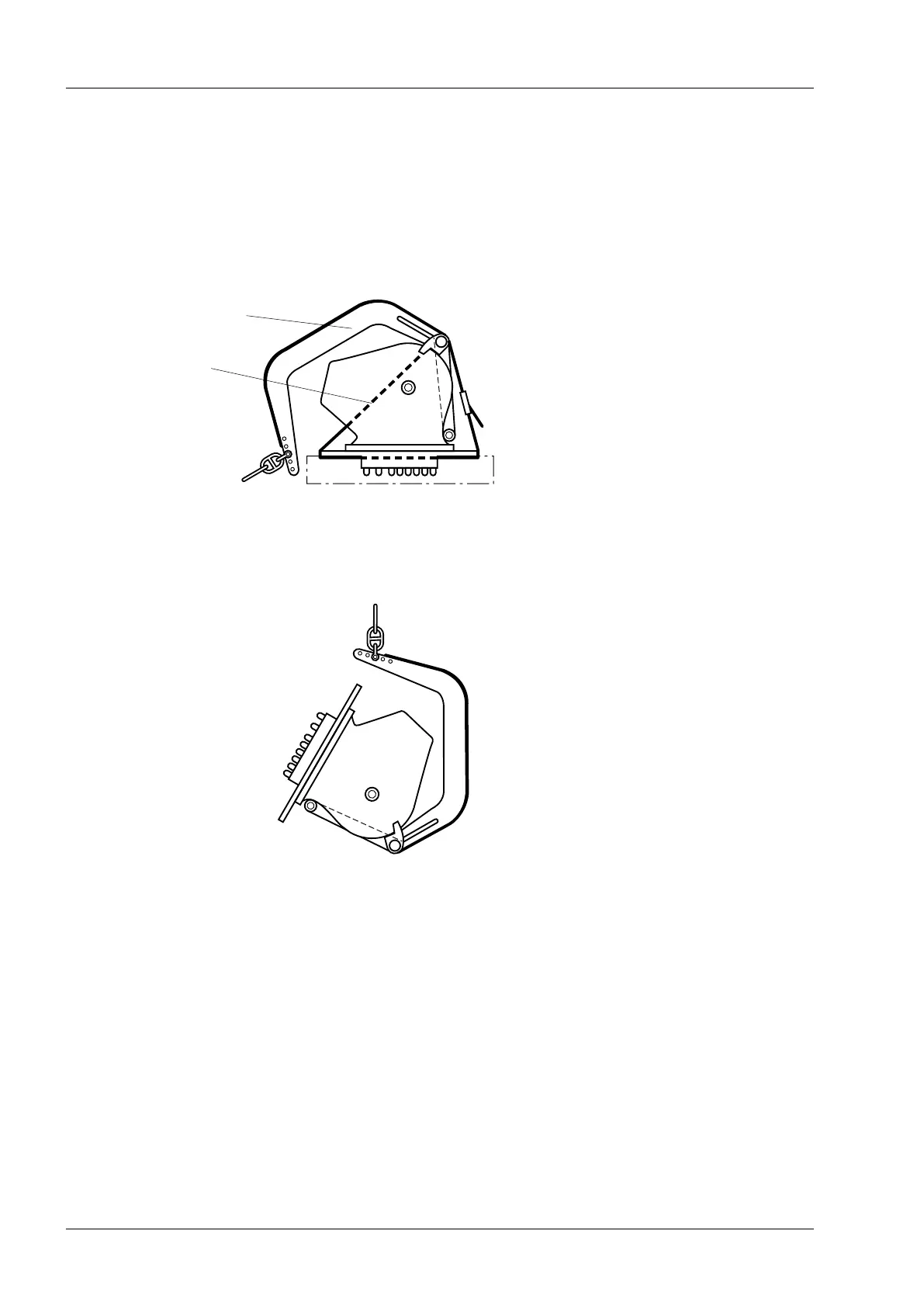

Fig. A13. Arrangement of lifting yoke.
Fig. A14. Lifting after raising.
