ABB V-Contact VSC Series

12

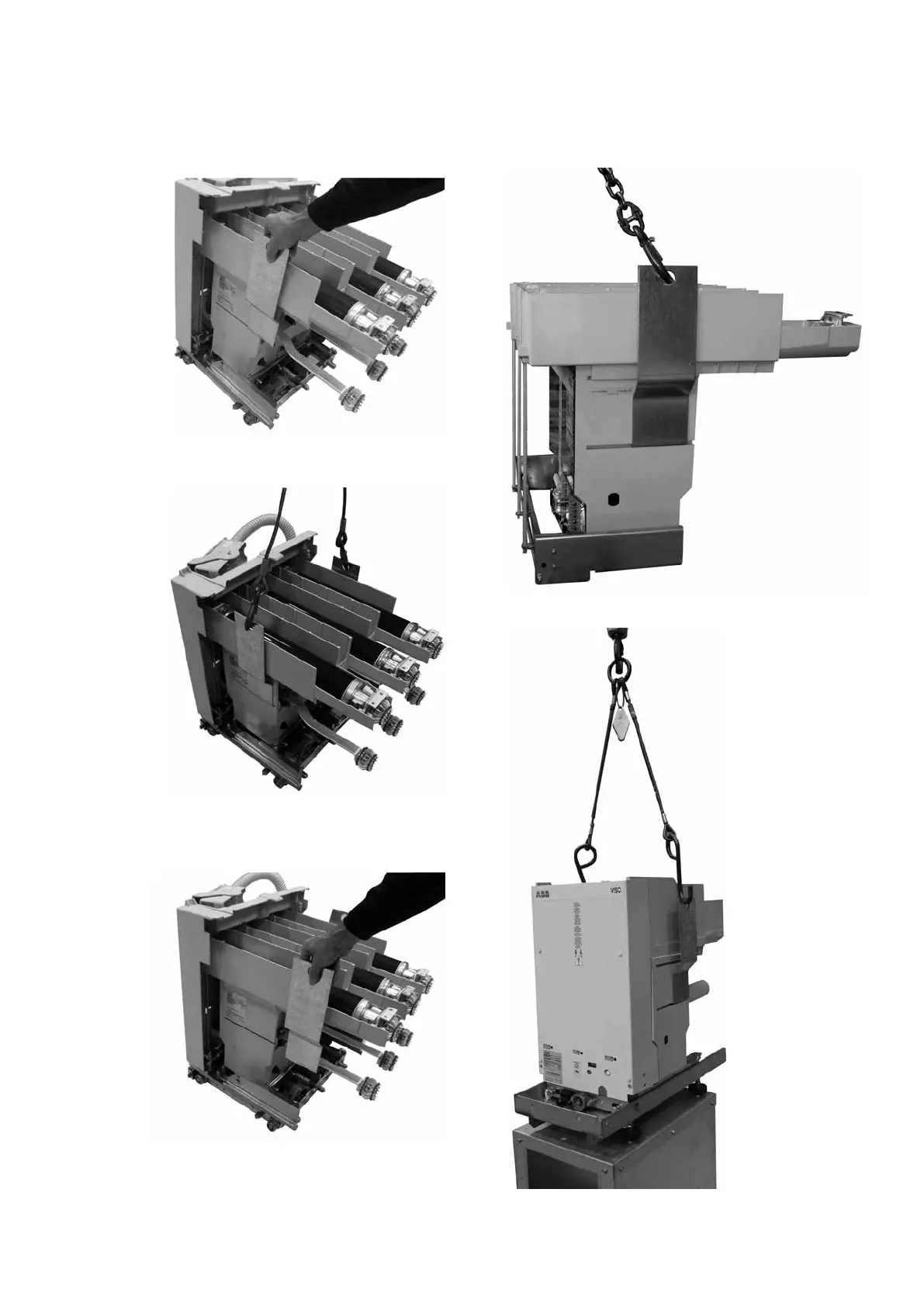

3.1. Handling and lifting using a crane
– Insert the lifting plates
– Lift
– Aftertheunpackingandliftingoperations,removetheliftingaccessories.
Fig. 3c - Fixed contactor with fuses
Fig. 3d - Withdrawable contactor
Fig. 3b - Removal of the contactor from the packing and dismantling the
lifting tools.
